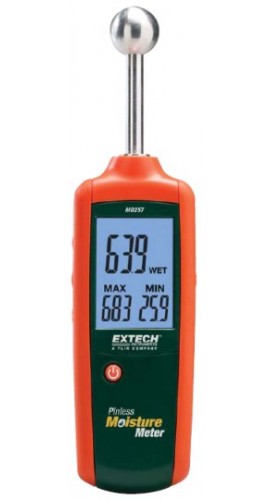

Extech MO257 Pinless Moisture Meter

Downloads: datasheet manual

Take non-invasive moisture content measurements in wood/building materials with virtually no damage.

Features

Relative pinless moisture reading for non-invasive measurement from 0.0 to 100.0 with 0.1 resolution
Multifunction backlit triple LCD display
Pinless measurement depth from 0.78" (20mm) to 1.6" (40mm) below the surface
High frequency sensing technology
Automatic Data Hold
Two adjustable alarm levels with audible beeper and visual (flashing “RISK” or “WET”) indicators
Two user-settable alarm levels with audible beeper and visual flashing RISK or WET indicators.
Measurement depth from 0.78 in. (20mm) to 1.6 in. (40mm) below the surface.
Automatic calibration (in dry air) when meter is powered on
Low battery indication
Auto Power off

Applications

Moisture Range	0.0 to 100.0 with 0.1 resolution
Measurement Depth	20 to 40mm (0.79 to 1.57")
Display Type	Backlit LCD
Display Digits	Three (3) numeric displays; each displaying from 0.0 to 100.0
Display Icons	HOLD, DRY, RISK, WET, MIN, MAX and low battery icon
Operating Temperature	4 to 43°C (40 to 110°F)
Auto Power Off (APO)	After 30 minutes of inactivity

datasheet for the Extech MO257 Pinless Moisture Meter manual for the Extech MO257 Pinless Moisture Meter

Features

Relative pinless moisture reading for non-invasive measurement from 0.0 to 100.0 with 0.1 resolution
Multifunction backlit triple LCD display
Pinless measurement depth from 0.78" (20mm) to 1.6" (40mm) below the surface
High frequency sensing technology
Automatic Data Hold
Two adjustable alarm levels with audible beeper and visual (flashing “RISK” or “WET”) indicators
Two user-settable alarm levels with audible beeper and visual flashing RISK or WET indicators.
Measurement depth from 0.78 in. (20mm) to 1.6 in. (40mm) below the surface.
Automatic calibration (in dry air) when meter is powered on
Low battery indication
Auto Power off

Applications

Moisture Range	0.0 to 100.0 with 0.1 resolution
Measurement Depth	20 to 40mm (0.79 to 1.57")
Display Type	Backlit LCD
Display Digits	Three (3) numeric displays; each displaying from 0.0 to 100.0
Display Icons	HOLD, DRY, RISK, WET, MIN, MAX and low battery icon
Operating Temperature	4 to 43°C (40 to 110°F)
Auto Power Off (APO)	After 30 minutes of inactivity
