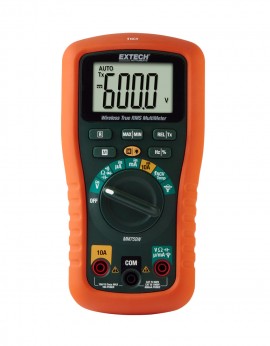

Extech MM750W Wireless Data Logging True RMS Multimeter

Model: MM750W | UPC: 0793950387504

Extech MM750W Wireless Data Logging True RMS Multimeter-

Downloads: datasheet

More Extech Products

Ask an Expert

Extech MM750W Wireless Data Logging True RMS Multimeter

Model: MM750W | UPC: 0793950387504

Featuring a fully loaded rugged wireless data logging multimeter with 14 functions including non-contact AC voltage detection and Type K temperature measurement. Using the wireless feature, Bluetooth® Datalogging Module, and the ExView® W-Series App, you can transmit readings in real-time to your smart devices.

Featuring a fully loaded rugged wireless data logging multimeter with 14 functions including non-contact AC voltage detection and Type K temperature measurement. Using the wireless feature, Bluetooth® Datalogging Module, and the ExView® W-Series App, you can transmit readings in real-time to your smart devices.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Data Logging Multimeters category for similar products.

Or let's do a search and help you find what you need:

Extech MM750W Offers

Features

  • Wireless DMM function with Bluetooth® Datalogging Module transmits readings to iOS® and Android™ devices for remote viewing using the free app
  • True RMS for accurate AC measurements
  • Type K Temperature function
  • 6000 count backlit LCD display
  • ±0.6% basic DCV accuracy
  • Built-in non-contact AC Voltage Detector (NCV)
  • AC μA function ideal for HVAC/R flame rod current measurement
  • External clamp adapter input (1 mV=1 A; 600 A AC/DC max)
  • MIN/MAX/DIF captures highest and lowest readings and the difference between them
  • Relative Mode for Capacitance Zero and offset adjustment
  • Data Hold freezes the reading on the display
  • Auto Power Off with disable and low battery indicator
  • CAT IV-600V, CAT III-1000V safety category

Wireless Datalogging Features

  • Bluetooth® Datalogging Module (DAT12) can record over 15k readings and transmit them to a smart device
  • Free ExView® W-Series App, provides Wireless Data Streaming with real-time remote viewing of readings
  • Adjustable sample rate and file size support most application needs
  • Programmable High/Low audible alarms
  • Color coded log reporting for easy identification of Alarm events
  • Record data directly to phone or tablet
  • Export data in Excel® format
  • Share data files and snapshots directly from application
  • Take snapshots of the measurement area with your connected smart phone or tablet camera to capture measurement-related images and to document date/time stamps and measurement data

Applications

  • Electrical

Download the App

Extech MM750W Specifications

Non-Contact Voltage (NCV) >100 VAC
AC Voltage Range: 0.1 mV to 1000 V
Max Resolution: 0.1 mV
Basic Accuracy: ±0.6% of rdg ±3 digits
DC Voltage Range: 0.1 mV to 1000 V
Max Resolution: 0.1 mV
Basic Accuracy: ±0.6% of rdg ±2 digits
AC Current Range: 0.1 μA to 10.00 A
Max Resolution: 0.1 μA
Basic Accuracy: ±0.15% of rdg ±5 digits
DC Current Range: 0.1 μA to 10.00 A
Max Resolution: 0.1 μA
Basic Accuracy: ±0.12% of rdg ±5 digits
AC μA Current Range: 0.1 to 6000 μA
Max Resolution: 0.1 μA
Basic Accuracy: ±0.15% of rdg ±5 digits
DC μA Current Range: 0.1 to 6000 μA
Max Resolution: 0.1 μA
Basic Accuracy: ±0.12% of rdg ±5 digits
Resistance Range: 0.1 Ω to 60.00 MΩ
Max Resolution: 0.1 Ω
Basic Accuracy: ±0.6% of rdg ±2 digits
Capacitance Range: 9.999 nF to 99.99 mF
Max Resolution: 0.001 nF
Basic Accuracy: ±5% of rdg ±5 digits
Frequency Range: 9.999 Hz to 55.00 MHz
Max Resolution: 0.001 MHz
Basic Accuracy: ±1.5% of rdg ±3 digits
Temperature (Type K) Range: -40 to 1832°F (-40 to 1000°C)
Max Resolution: 1°
Basic Accuracy: ±(2%+2°F) / ±(2%+2°C)
Duty Cycle Range: 0.1 to 99.9%
Max Resolution: 0.1%
Basic Accuracy: ±1.2% of rdg ±2 digits
Diode Test Range: 3.000 V
Max Resolution: 0.001 V
Basic Accuracy: ±10% of rdg ±5 digits
Continuity Audible
Data Logging 15,360 data points (with DAT12)
Dimensions 7.4 x 3.8 x 2.2" (188 x 96 x 56 mm)
Weight 14.6 oz (415 g) without battery
Click here for complete specifications on the Extech MM750W

What's included with the Extech MM750W

  • True RMS Multimeter
  • Test Leads
  • General Purpose Type K Bead Wire Temperature Probe
  • Wireless Data Logging Module
  • 9 V Battery
  • Soft Carrying Case
datasheet for the Extech MM750W Wireless Data Logging True RMS Multimeter

Ask a question about Extech MM750W Wireless Data Logging True RMS Multimeter

Customer Reviews for the Extech MM750W

Extech MM750W Offers

Features

  • Wireless DMM function with Bluetooth® Datalogging Module transmits readings to iOS® and Android™ devices for remote viewing using the free app
  • True RMS for accurate AC measurements
  • Type K Temperature function
  • 6000 count backlit LCD display
  • ±0.6% basic DCV accuracy
  • Built-in non-contact AC Voltage Detector (NCV)
  • AC μA function ideal for HVAC/R flame rod current measurement
  • External clamp adapter input (1 mV=1 A; 600 A AC/DC max)
  • MIN/MAX/DIF captures highest and lowest readings and the difference between them
  • Relative Mode for Capacitance Zero and offset adjustment
  • Data Hold freezes the reading on the display
  • Auto Power Off with disable and low battery indicator
  • CAT IV-600V, CAT III-1000V safety category

Wireless Datalogging Features

  • Bluetooth® Datalogging Module (DAT12) can record over 15k readings and transmit them to a smart device
  • Free ExView® W-Series App, provides Wireless Data Streaming with real-time remote viewing of readings
  • Adjustable sample rate and file size support most application needs
  • Programmable High/Low audible alarms
  • Color coded log reporting for easy identification of Alarm events
  • Record data directly to phone or tablet
  • Export data in Excel® format
  • Share data files and snapshots directly from application
  • Take snapshots of the measurement area with your connected smart phone or tablet camera to capture measurement-related images and to document date/time stamps and measurement data

Applications

  • Electrical

Download the App

Show More...

Extech MM750W Specifications

Non-Contact Voltage (NCV) >100 VAC
AC Voltage Range: 0.1 mV to 1000 V
Max Resolution: 0.1 mV
Basic Accuracy: ±0.6% of rdg ±3 digits
DC Voltage Range: 0.1 mV to 1000 V
Max Resolution: 0.1 mV
Basic Accuracy: ±0.6% of rdg ±2 digits
AC Current Range: 0.1 μA to 10.00 A
Max Resolution: 0.1 μA
Basic Accuracy: ±0.15% of rdg ±5 digits
DC Current Range: 0.1 μA to 10.00 A
Max Resolution: 0.1 μA
Basic Accuracy: ±0.12% of rdg ±5 digits
AC μA Current Range: 0.1 to 6000 μA
Max Resolution: 0.1 μA
Basic Accuracy: ±0.15% of rdg ±5 digits
DC μA Current Range: 0.1 to 6000 μA
Max Resolution: 0.1 μA
Basic Accuracy: ±0.12% of rdg ±5 digits
Resistance Range: 0.1 Ω to 60.00 MΩ
Max Resolution: 0.1 Ω
Basic Accuracy: ±0.6% of rdg ±2 digits
Capacitance Range: 9.999 nF to 99.99 mF
Max Resolution: 0.001 nF
Basic Accuracy: ±5% of rdg ±5 digits
Frequency Range: 9.999 Hz to 55.00 MHz
Max Resolution: 0.001 MHz
Basic Accuracy: ±1.5% of rdg ±3 digits
Temperature (Type K) Range: -40 to 1832°F (-40 to 1000°C)
Max Resolution: 1°
Basic Accuracy: ±(2%+2°F) / ±(2%+2°C)
Duty Cycle Range: 0.1 to 99.9%
Max Resolution: 0.1%
Basic Accuracy: ±1.2% of rdg ±2 digits
Diode Test Range: 3.000 V
Max Resolution: 0.001 V
Basic Accuracy: ±10% of rdg ±5 digits
Continuity Audible
Data Logging 15,360 data points (with DAT12)
Dimensions 7.4 x 3.8 x 2.2" (188 x 96 x 56 mm)
Weight 14.6 oz (415 g) without battery
Click here for complete specifications on the Extech MM750W

What's included with the Extech MM750W

  • True RMS Multimeter
  • Test Leads
  • General Purpose Type K Bead Wire Temperature Probe
  • Wireless Data Logging Module
  • 9 V Battery
  • Soft Carrying Case
datasheet for the Extech MM750W Wireless Data Logging True RMS Multimeter

Ask a question about Extech MM750W Wireless Data Logging True RMS Multimeter

Customer Reviews for the Extech MM750W
