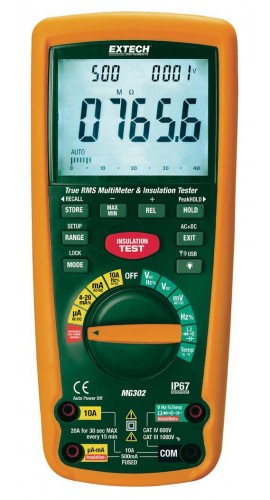

Extech MG302-NIST True RMS Wireless Multimeter/Insulation Tester, 4000M½, includes Traceable Calibration Certificate

Model: MG302-NIST | UPC: 793950383025

Be the first to review this product

$Extech MG302-NIST True RMS Wireless Multimeter/Insulation Tester, 4000M&frac12;, -$

Downloads: datasheet

More Extech Products

Ask an Expert

Extech MG302-NIST True RMS Wireless Multimeter/Insulation Tester, 4000M½, includes Traceable Calibration Certificate

Model: MG302-NIST | UPC: 793950383025

Be the first to review this product

13 Function Multimeter/1000V Insulation Tester with Wireless PC interface (433MHz). This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Extech MG320 CAT IV Insulation Tester, True RMS MultiMeter, 20GΩ

Model: MG320

Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results.

Learn More

Extech MG302-NIST Offers

Features

True RMS measurements for accurate readings of noisy, distorted or non-sinusoidal waveforms
13 multimeter functions AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature and diode/continuity
125V, 250V, 500V, and 1000V test voltages
Insulation resistance measurements up to 4GΩ
Duty cycle measurements and milliamp readings for analog 4-20mA current loops
USB interface (433MHz) for the ability to monitor real-time readings on a laptop or computer from up to 30 feet away and wireless data recording for safer troubleshooting and maintenance
Auto discharge of capacitive voltage
Backlit super large triple display
Min/Max and Relative mode
Data Hold and auto power off
Waterproof (IP67) rugged double-molded design
Lock power on function for hands-free operation
CAT IV 600V safety rating

EXTECH MG302-NIST Specifications

Insulation Test Voltages	125V, 250V, 500V, 1000V
Insulation Resistance Range	4MΩ, 40MΩ, 400MΩ, 4000MΩ
AC/DC Voltage Range	1000V
AC/DC Current Range	10A
Resistance Range	40MΩ
Capacitance Range	40mF
Frequency Range	100MHz
Duty Cycle Range	0.1 to 99.9%
Temperature Range	-58 to 2192°F (-50 to 1200°C)
Dimensions	7.8 x 3.6 x 1.9" (200 x 92 x 50mm)
Weight	20.5oz (582g)

Click here for complete specifications on the Extech MG302-NIST

What's included with the Extech MG302-NIST

Multimeter/Insulation Tester
NIST Certificate with full Data and Uncertainties (includes full Data & Uncertainties)
Heavy Duty Test Leads
Alligator Clip Test Lead
Type K Bead Wire Temperature Probe with Adapter
Remote Receiver with USB Cable
Windows® Compatible Software
Carrying Case
6 x AA Batteries
