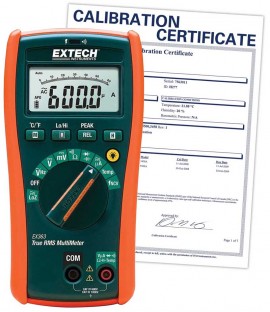

Extech EX363 True RMS Multimeter with 11 Functions + NCV, includes Traceable Calibration Certificate

Model: EX363-NIST

Be the first to review this product

Extech EX363 True RMS Multimeter with 11 Functions + NCV, -

Downloads: datasheet manual

More Extech Products

Ask an Expert

Extech EX363 True RMS Multimeter with 11 Functions + NCV, includes Traceable Calibration Certificate

Model: EX363-NIST

Be the first to review this product

This quality compact HVAC/R True RMS multiMeter with a built in non contact voltage detector and Type-K temperature functions offers the same functions as the Extech EX360 as well as it excels in HVAC/R flame rod measurements with a micro;A function, as well as Type K Temperature measurements from -40 to 742°F (-40 to 394°C) and Frequency and Capacitance measurements. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

FLIR DM66 True RMS Multimeter with LoZ, 600V

Model: DM66

The DM66 includes a low impedance (LoZ) mode to prevent ghost voltage from delivering false readings. It also features non-contact voltage detection as well as frequency, diode, capacitance, and temperature measurement.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Extech EX363-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

Autoranging DMM measures AC/DC voltage, resistance, frequency, capacitance, diode test, and continuity beeper with visual alert
True RMS for accurate AC measurements when measuring distorted or noisy waveforms
Built-in non-contact AC voltage detector (NCV) with Hi/Low ranges and LED indicator quickly checks for the presence of AC voltage before testing
Temperature measurements via type K thermocouple input
µA function for HVAC/R flame rod measurements
Low impedance (LoZ) prevents false readings caused by ghost voltages
Large-digit backlit 6,000-count LCD display
Fast 60-segment analog bargraph for viewing trends
Relative Mode for capacitance zero and offset adjustment
Smart Data Hold freezes the displayed reading and automatically updates the reading and alerts user (audibly and visually) if the measurement changes ±50 counts
Peak Hold captures the highest reading
Auto Power Off with disable
CAT IV 600V safety rating

Extech EX363-NIST Specifications

AC/DC Voltage Range	0.1mV to 1000V
AC/DC µA Current Range	600µA
Non-contact AC Voltage Range	80 to 1000V
Resistance Range	0.1Ω to 40MΩ
Capacitance Range	1nF to 10mF
Frequency Range	0.01Hz to 100kHz
Type K Temperature Range	-40 to 472°F (-40 to 394°C)
Dimensions	6.5 x 3.2 x 1.7" (164 x 81 x 44mm)
Weight	5.9oz (450g)

Click here for complete specifications on the Extech EX363-NIST

What's included with the Extech EX363-NIST

TRMS AC/DC Multimeter/AC Voltage Detector
Traceable Calibration Certificate with full Data and Uncertainties
Test Leads
General Purpose Type K Bead Wire Temperature Probe
Holster with Tilt Stand and Magnet
1 x 9V Battery

datasheet for the Extech EX363 True RMS Multimeter with 11 Functions + NCV, manual for the Extech EX363 True RMS Multimeter with 11 Functions + NCV,

Ask a question about Extech EX363 True RMS Multimeter with 11 Functions + NCV,

Customer Reviews for the Extech EX363-NIST

Description ➕➖

Extech EX363-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

Autoranging DMM measures AC/DC voltage, resistance, frequency, capacitance, diode test, and continuity beeper with visual alert
True RMS for accurate AC measurements when measuring distorted or noisy waveforms
Built-in non-contact AC voltage detector (NCV) with Hi/Low ranges and LED indicator quickly checks for the presence of AC voltage before testing
Temperature measurements via type K thermocouple input
µA function for HVAC/R flame rod measurements
Low impedance (LoZ) prevents false readings caused by ghost voltages
Large-digit backlit 6,000-count LCD display
Fast 60-segment analog bargraph for viewing trends
Relative Mode for capacitance zero and offset adjustment
Smart Data Hold freezes the displayed reading and automatically updates the reading and alerts user (audibly and visually) if the measurement changes ±50 counts
Peak Hold captures the highest reading
Auto Power Off with disable
CAT IV 600V safety rating

Specifications ➕➖

Extech EX363-NIST Specifications

AC/DC Voltage Range	0.1mV to 1000V
AC/DC µA Current Range	600µA
Non-contact AC Voltage Range	80 to 1000V
Resistance Range	0.1Ω to 40MΩ
Capacitance Range	1nF to 10mF
Frequency Range	0.01Hz to 100kHz
Type K Temperature Range	-40 to 472°F (-40 to 394°C)
Dimensions	6.5 x 3.2 x 1.7" (164 x 81 x 44mm)
Weight	5.9oz (450g)
