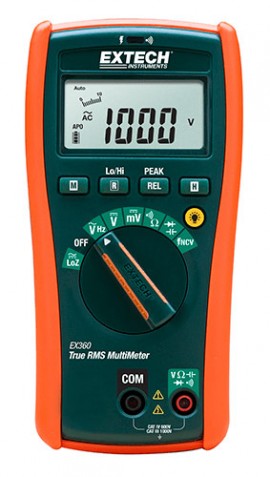

Extech EX360 True RMS Multimeter with 8 Functions + NCV

Model: EX360 | UPC: 0793950393604

Be the first to review this product

Extech EX360 True RMS Multimeter with 8 Functions + NCV-

Downloads: datasheet manual

More Extech Products

Ask an Expert

Extech EX360 True RMS Multimeter with 8 Functions + NCV

Model: EX360 | UPC: 0793950393604

Be the first to review this product

This quality compact electrical True RMS multiMeter with a built in non contact voltage detector offers highly accurate True RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, .5% basic accuracy, a 1000V AC/DC volt range, resistance up to 40MΩ, continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero and offset adjustment.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

FLIR DM66 True RMS Multimeter with LoZ, 600V

Model: DM66

The DM66 includes a low impedance (LoZ) mode to prevent ghost voltage from delivering false readings. It also features non-contact voltage detection as well as frequency, diode, capacitance, and temperature measurement.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Extech EX360 Offers

Features

Autoranging DMM measures AC/DC voltage, resistance, frequency, capacitance, diode test, and continuity beeper with visual alert
True RMS for accurate AC measurements when measuring distorted or noisy waveforms
Built-in non-contact AC voltage detector (NCV) with Hi/Low ranges and LED indicator quickly checks for the presence of AC voltage before testing
Low impedance (LoZ) prevents false readings caused by ghost voltages
Large-digit backlit 6,000-count LCD display
Fast 60-segment analog bargraph for viewing trends
Relative Mode for capacitance zero and offset adjustment
Smart Data Hold freezes the displayed reading and automatically updates the reading and alerts user (audibly and visually) if the measurement changes ±50 counts
Peak Hold captures the highest reading
Auto Power Off with disable
CAT IV 600V safety rating

Extech EX360 Specifications

AC/DC Voltage Range	0.1mV to 1000V
Non-contact AC Voltage Range	80 to 1000V
Resistance Range	0.1Ω to 40MΩ
Capacitance Range	1nF to 10mF
Frequency Range	0.01Hz to 100kHz
Dimensions	6.5 x 3.2 x 1.7" (164 x 81 x 44mm)
Weight	5.9oz (450g)

Click here for complete specifications on the Extech EX360

What's included with the Extech EX360

TRMS AC/DC Multimeter/AC Voltage Detector
Test Leads
Holster with Tilt Stand and Magnet
1 x 9V Battery

datasheet for the Extech EX360 True RMS Multimeter with 8 Functions + NCV manual for the Extech EX360 True RMS Multimeter with 8 Functions + NCV

Ask a question about Extech EX360 True RMS Multimeter with 8 Functions + NCV

Customer Reviews for the Extech EX360

Description ➕➖

Extech EX360 Offers

Features

Autoranging DMM measures AC/DC voltage, resistance, frequency, capacitance, diode test, and continuity beeper with visual alert
True RMS for accurate AC measurements when measuring distorted or noisy waveforms
Built-in non-contact AC voltage detector (NCV) with Hi/Low ranges and LED indicator quickly checks for the presence of AC voltage before testing
Low impedance (LoZ) prevents false readings caused by ghost voltages
Large-digit backlit 6,000-count LCD display
Fast 60-segment analog bargraph for viewing trends
Relative Mode for capacitance zero and offset adjustment
Smart Data Hold freezes the displayed reading and automatically updates the reading and alerts user (audibly and visually) if the measurement changes ±50 counts
Peak Hold captures the highest reading
Auto Power Off with disable
CAT IV 600V safety rating

Specifications ➕➖

Extech EX360 Specifications

AC/DC Voltage Range	0.1mV to 1000V
Non-contact AC Voltage Range	80 to 1000V
Resistance Range	0.1Ω to 40MΩ
Capacitance Range	1nF to 10mF
Frequency Range	0.01Hz to 100kHz
Dimensions	6.5 x 3.2 x 1.7" (164 x 81 x 44mm)
Weight	5.9oz (450g)
