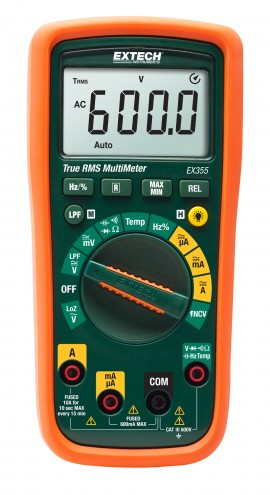

Extech EX355 TRMS Multimeter with Temperature & NCV, 12 Functions

Model: EX355 | UPC: 793950393550

Be the first to review this product

Professional True RMS digital multimeter with temperature function, non-contact voltage detector, low impedance and low pass filter. Featuring True RMS that provides accurate readings when measuring distorted or noisy waveforms, as well as a 6000 count backlit LCD display.

Your Price	$129.00 USD
Availability	1 to 2 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your EX355 TRMS Multimeter with Temperature & NCV

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM2) for only $130.00 USD

Traceable Calibration Certificate for your EX355 TRMS Multimeter with Temperature & NCV

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM2) for only $130.00 USD

Extech EX355 Offers

Features

Autoranging DMM measures AC/DC voltage and current, resistance, frequency, capacitance, duty cycle, diode test, and continuity
Temperature measurements via type K thermocouple input
True RMS for accurate AC measurements when measuring distorted or noisy waveforms
Built-in non-contact AC voltage detector (NCV) with LED indicator quickly checks for the presence of AC voltage before testing
Low Impedance (LoZ) prevents false readings caused by ghost voltages
Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals
0.5% basic accuracy
Large-digit backlit 6,000-count LCD display
Relative Mode for capacitance zero and offset adjustment
Min/Max/Max-Min captures highest and lowest readings and the difference between them
Data Hold freezes the reading on the display
Auto Power Off conserves battery life
CAT III 600V safety rating

Extech EX355 Specifications

AC/DC Voltage Range	0.1mV to 600V
AC/DC Current Range	0.1µA to 10.00A
Non-contact AC Voltage Range	100 to 600V
Resistance Range	0.1Ω to 40.00MΩ
Capacitance Range	1pF to 60.00mF
Frequency Range	0.001Hz to 10MHz
Duty Cycle Range	0.1 to 99.9%
Type K Temperature Range	-40 to 1832°F (-40 to 1000°C)
Dimensions	6.7 x 3.2 x 1.9" (175 x 81 x 48.5mm)
Weight	13.1oz (370g)

Click here for complete specifications on the Extech EX355

What's included with the Extech EX355

TRMS AC/DC Multimeter/AC Voltage Detector
Test Leads
General Purpose Type K Bead Wire Temperature Probe
2 x AA Batteries
