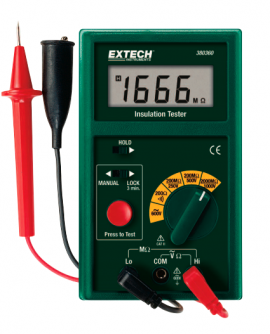

Extech 380360 Digital Megohmmeter, 1000V

Model: 380360 | UPC: 793950383605

Be the first to review this product

Extech 380360 Digital Megohmmeter, 1000V-

Downloads: datasheet

More Extech Products

Ask an Expert

Extech 380360 Digital Megohmmeter, 1000V

Model: 380360 | UPC: 793950383605

Be the first to review this product

Safety Power Lock enables "hands free" operation for 3 minute test.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Extech 380260 Autoranging Digital Megohmmeter, 1000 V

Model: 380260

Capable of measuring insulation resistance up to 2000 MΩ, this auto-ranging digital megohmmeter features a dual display that indicates test voltage output and insulation resistance. With a choice of 250,500 or 1000 VDC test voltages, this megohmmeter also features an automatic discharge, power lock-on, and data-hold.

Learn More

Extech 380360 Offers

EXTECH 380360 Offers

Features

Three test voltages of 250V, 500V and 1000V
Insulation resistance to 2000MΩ
Continuity measurements to 200Ω and voltage to 600VAC
Safety Power Lock enables “hands free” operation for 3-minute test
Automatic discharge when safety “Press to Test” button is released
Large 0.65" (17mm) LCD display with Data Hold
Overload protection
Automatic zero adjustment
Auto power off

Extech 380360 Specifications

DC Test Voltages	250V, 500V, 1000V
Insulation Resistance Range	200MΩ, 2000MΩ
AC Voltage Range	600VAC
Resistance Range	200Ω
Dimensions	6.5 x 3.9 x 2.2" (165 x 100 x 57mm)
Weight	1.1 lb (500g)

Click here for complete specifications on the Extech 380360

What's included with the Extech 380360

Digital Megohmmeter
Heavy duty 2.5ft (0.8m) Test Leads
Alligator Clip
Large Probe
Carrying Case with Neck Strap
6 x AA Batteries

datasheet for the Extech 380360 Digital Megohmmeter, 1000V

Ask a question about Extech 380360 Digital Megohmmeter, 1000V

Customer Reviews for the Extech 380360

Description ➕➖

Extech 380360 Offers

EXTECH 380360 Offers

Features

Three test voltages of 250V, 500V and 1000V
Insulation resistance to 2000MΩ
Continuity measurements to 200Ω and voltage to 600VAC
Safety Power Lock enables “hands free” operation for 3-minute test
Automatic discharge when safety “Press to Test” button is released
Large 0.65" (17mm) LCD display with Data Hold
Overload protection
Automatic zero adjustment
Auto power off

Specifications ➕➖

Extech 380360 Specifications

DC Test Voltages	250V, 500V, 1000V
Insulation Resistance Range	200MΩ, 2000MΩ
AC Voltage Range	600VAC
Resistance Range	200Ω
Dimensions	6.5 x 3.9 x 2.2" (165 x 100 x 57mm)
Weight	1.1 lb (500g)
