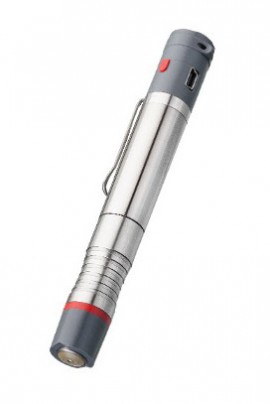

ElektroPhysik 80-126-0400 SmarTest Bluetooth Coating Thickness Gauge with FN 1.5 sensor

Model: 80-126-0400

Be the first to review this product

ElektroPhysik 80-126-0400 SmarTest Bluetooth Coating Thickness Gauge with FN 1.5 sensor-

Downloads: datasheet manual

More ElektroPhysik Products

Ask an Expert

ElektroPhysik 80-126-0400 SmarTest Bluetooth Coating Thickness Gauge with FN 1.5 sensor

Model: 80-126-0400

Be the first to review this product

The coating thickness gauge measures non-magnetic and insulated coatings. It's equipped with Bluetooth® technology and SmarTest app compatibility.

Your Price	$2115.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

ElektroPhysik 80-126-0400 Offers

Take non-destructive coating thickness measurements with the ElektroPhysik 80-126-0400 SmarTest Bluetooth Coating Thickness Gauge with FN 1.5 sensor. From non-magnetic coatings to insulated coatings, this digital thickness gauge delivers accurate readings directly to your mobile device via Bluetooth® technology. Download the SmarTest app to store, analyze and export results.

Features

Measures non-magnetic coatings, such as varnishes, enamels, chromium and zinc on ferromagnetic base materials
Also measures insulated coatings, such as varnishes and anodizing aluminum on non-ferrous metals
Bluetooth® technology lets you wirelessly send readings to the SmarTest app on your Android/iOS mobile device (download required)
SmarTest app includes a display of current measuring values, statistical evaluations, data storage, 2-point calibration, measuring unit metric/imperial conversion and data export in CSV format
LED indicator lets you know when readings exceed set limitations
Functions include single-value mode and continuous mode
Can connect to most SIDSP sensors (sold separately)
Temperature compensation optimizes results
Highly precise characteristic curves offer up to 50 support points in the manufacturer's calibration
Internal battery control helps prevent flawed measurements caused by a low battery charge
Additional probes sold separately

ElektroPhysik 80-126-0400 Specifications

Product Length	0.63" (16 mm)
Battery Life	Up to 8 hours
Product Weight	2.1 oz (60 g)
Accuracy	±(1 μm + 0.75% of reading)
Rechargeable Battery	Yes
Product Width	4.9" (125 mm)
Supported Measurement Unit(s)	mils
Power Source	Battery powered
Measurement Range	F 1.5 probe: 0 to 0.06" (0 to 1.5 mm/59 mils), FN 1.5 probe: F-Range 0 to 0.06" (0 to 1.5 mm/59 mils), N-Range 0 to 0.05" (0 to 1.3 mm/51 mils)
Display Type	None

Click here for complete specifications on the ElektroPhysik 80-126-0400

What's included with the ElektroPhysik 80-126-0400

Thickness Gauge
Certificate
Calibration Set
LiFePO4 Battery
USB Charger
Micro USB Cable
Case
User's Manual

datasheet for the ElektroPhysik 80-126-0400 SmarTest Bluetooth Coating Thickness Gauge with FN 1.5 sensor manual for the ElektroPhysik 80-126-0400 SmarTest Bluetooth Coating Thickness Gauge with FN 1.5 sensor
