ElektroPhysik SmarTest Coating Thickness Sensor with F2.6 sensor, Bluetooth

Model: SmarTest F 2.6 | Order No: MIN/015010

ElektroPhysik SmarTest Coating Thickness Sensor with F2.6 sensor, Bluetooth

Model: SmarTest F 2.6 | Order No: MIN/015010

With its small sizing, you can carry this intelligent wireless sensor anywhere. It relays sensor data via Bluetooth to your tablet, smart phone or the MiniTest 745 coating thickness gauge. You can connect any SIDSP sensor to SmarTest and cover a wide range of coating thickness measurement tasks. This configuration includes an F2.6 sensor for ferrous materials.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

ElektroPhysik SmarTest Coating Thickness Gauge with Bluetooth

Model: SmarTest | Order No: 80-126-0000

With its small sizing, you can carry this intelligent wireless gauge anywhere. It relays sensor data via Bluetooth to your tablet, smart phone or the MiniTest 745 coating thickness gauge. You can connect any SIDSP sensor (sold separately) to SmarTest and cover a wide range of coating thickness measurement tasks.

Learn More

ElektroPhysik SmarTest F 2.6 Offers

Features

Precision coating thickness gauge with digital sensor
Transfer of measuring data via Bluetooth, range of approx. 10 m
Display and operation by app in 4 languages currently (German, English, French and Chinese)
Wear resistant probes with a virtually unlimited life
Optimal temperature compensation by individual compensation characteristic curves
High precision characteristic curves with up to 50 support points in the manufacturer's calibration
Battery charge lasts for more than 8 hours of operation
Batteries are charged using a mini USB socket
Internal battery control prevents incorrect measurements caused by low battery charge
Storage and transmission of measuring data in the CSV format

Applications

Non-magnetic coatings like varnishes, enamels, chromium and zinc on ferromagnetic base materials (e.g. steel)
Insulating coatings like varnishes and anodising aluminium on nonferrous metals (e.g. aluminium, austenitic stainless steel, brass)

ElektroPhysik SmarTest F 2.6 Specifications

Measuring Range	F: 0 ... 2.6 mm / 0 ... 102 mils
Measuring Method	Magnetic Induction
Accuracy	± (1 µm + 0.75% of reading) ± (0.04 mils + 0.75% of reading)
Repeatability	± (0.5 µm + 0.5% of reading) ± (0.02 mils + 0.5% of reading)
Low Range Resolution	0.05 µm / 0.002 mils
Minimum Curvature Radius	convex: 1.5 mm / 59 mils concave: 7.5 mm / 295 mils
Minimum Measuring Area	Ø 5 mm / 197 mils
Operating Temperature	14 to 140 °F (-10 to 60 °C)
Storing Temperature	-4 to 158 °F (-20 to 70 °C)
Power Supply	LiFePO4 battery operating time approx. 8 hours continuous operation
Dimensions	125 mm x ø 16 mm / 4.9" x ø 0.63"
Weight	48 g / 1.7 oz

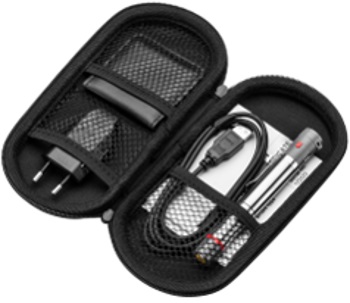

What's included with the ElektroPhysik SmarTest F 2.6

Coating Thickness Sensor
F2.6 Sensor
Calibration Set with Calibration Standards and Zero Reference Plate(s)
USB Charger with Mini USB Cable
Manufacturer's Certificate
Storage Case
Operating Manual
