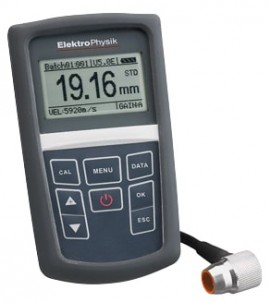

This is a high-end device with integrated memory for 10 groups each with a maximum capacity of 500 measuring values, USB interface and 5 measuring modes; connecting echo-echo probes is possible. The high-end device that can penetrate coatings for measuring. This device is equipped for automatic detection of the intelligent ultrasonic probes and re-calibration is not required upon switching probes.
This is a high-end device with integrated memory for 10 groups each with a maximum capacity of 500 measuring values, USB interface and 5 measuring modes; connecting echo-echo probes is possible. The high-end device that can penetrate coatings for measuring. This device is equipped for automatic detection of the intelligent ultrasonic probes and re-calibration is not required upon switching probes.
Applications
| Measuring Range | Echo-Echo: 3 - 25 mm (0.12 - 0.98") Pulse Echo: With standard transducer U5.0E: 0.8 - 300 mm (0.03 - 11.8") |
Resolution | 0.01mm (0 – 99.9 mm), 0.1(> 100 mm) | Display | 128 x 64 pixels with backlight | Velocity Range | 0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec |
| Measuring mode | (Pulse-Echo) Standard: normal operation Minimum: detection of thinnest point Difference: deviation of reading to preset value Alarm (Echo-Echo) Measurements through the coating (Scan) High speed scan for high temperature surfaces |
Probe | Standard transducer U5.0: 8mm (0.31") |
| Operation Temperature | -4 to 122°F (-20 to 50°C) |
| Cable | Software and data transmission cable |
| Battery Type | Two AA batteries |
| Battery Life | more than 80 hours under continuous operation |
| Weight | approx. 6.70 oz (190 g) |
| Size | 5.1 x 2.9 x 0.94" (130 X 73 X 24 mm) |
| Data storage | 10 groups with max. 500 values each |
| Data interface | USB |
| Calibration | automatic |
| Measuring Range | Echo-Echo: 3 - 25 mm (0.12 - 0.98") Pulse Echo: With standard transducer U5.0E: 0.8 - 300 mm (0.03 - 11.8") |
Resolution | 0.01mm (0 – 99.9 mm), 0.1(> 100 mm) | Display | 128 x 64 pixels with backlight | Velocity Range | 0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec |
| Measuring mode | (Pulse-Echo) Standard: normal operation Minimum: detection of thinnest point Difference: deviation of reading to preset value Alarm (Echo-Echo) Measurements through the coating (Scan) High speed scan for high temperature surfaces |
Probe | Standard transducer U5.0: 8mm (0.31") |
| Operation Temperature | -4 to 122°F (-20 to 50°C) |
| Cable | Software and data transmission cable |
| Battery Type | Two AA batteries |
| Battery Life | more than 80 hours under continuous operation |
| Weight | approx. 6.70 oz (190 g) |
| Size | 5.1 x 2.9 x 0.94" (130 X 73 X 24 mm) |
| Data storage | 10 groups with max. 500 values each |
| Data interface | USB |
| Calibration | automatic |
