Efergy EC 001 JP Offers

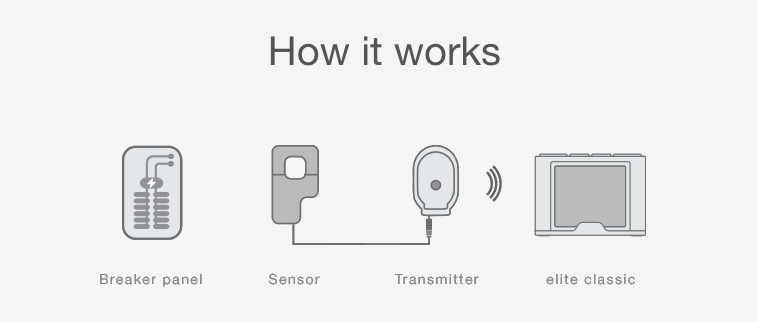

The sensor clips on the power supply cable (phase) we want to monitor and with its jackplug, connects to one of the available ports of the transmitter. The sensor inductively measures the current passing through the wire and transfers these information to the transmitter, which are then transmitted wirelessly to the energy monitor's display for processing and viewing.

Features

• Portable, compact design
• View instant power and cost
• Historical data (day, week & month)
• Tracks your carbon emissions
• Shows room temperature & humidity
• View your average energy consumption
• Audio alert indication of power excess
• Multi-tariff ready
• Holds up to 24-month data
• Multi-currency (€, £, $, cP, RKr)

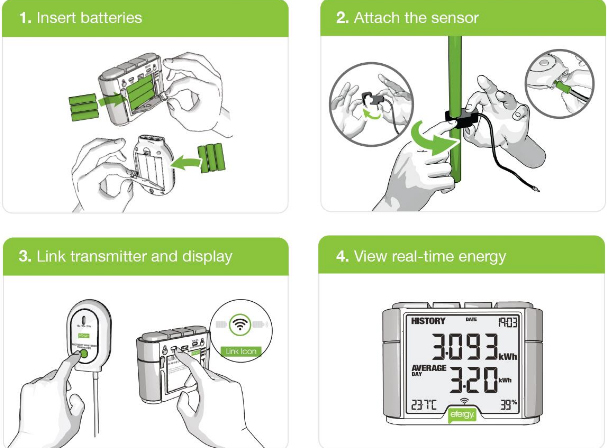

Easy Installation in 4 steps

1. Locate your breaker panel feed cable and clip the CT sensor to the live wire of the feed cable. IMPORTANT: EFERGY RECOMMENDS THAT INSTALLATION IS CARRIED OUT BY A QUALIFIED ELECTRICIAN
2. Insert the 3 x AA batteries into the transmitters and then plug the CT sensor into the transmitters
3. Insert 3 x AA batteries into the display, press and hold the link button until the 4 dashes flash on the screen. Then press once the link button on the transmitter to complete the pairing process
4. Complete the desired settings of your monitor, e.g. time, date, voltage, currency etc and start watching how you consume electricity
