E Instruments MP50 Portable Handheld Manometer, 0 to ± 4 inH2O

Model: MP50 | Order No: 24604

Be the first to review this product

E Instruments MP50 Portable Handheld Manometer, 0 to &plusmn; 4 inH2O-

Downloads: datasheet

More E Instruments Products

Ask an Expert

E Instruments MP50 Portable Handheld Manometer, 0 to ± 4 inH2O

Model: MP50 | Order No: 24604

Be the first to review this product

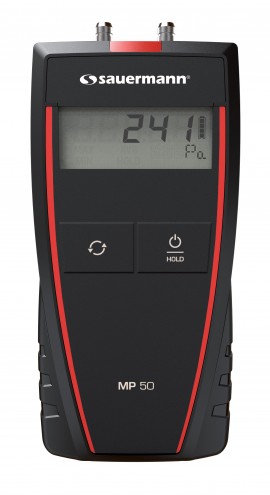

The portable handheld manometer has an integrated pressure sensor (0 to ± 4 inH2O) with a 20-minute auto shut-off and a built-in probe.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Digital Manometers category for similar products.

Or let's do a search and help you find what you need:

E Instruments MP50 Offers

Features

Has a 2-line display
Easy to use
HOLD function
Pressure
Temperature and humidity
Built-in probe
20 minute auto shut-off

E Instruments MP50 Specifications

Measuring Units	Pa, mm H₂O, inWg, daPa++
Measuring Range	-10 to 10 mbar / -1000 to 1000 Pa
Accuracy	±0.5 of reading ±0.02 mbar ±0.5 of reading ±2 Pa
Resolution	0.01 mbar / 1 Pa
Response Time	T63 = 0.3 s
Conditions of Use	32 to 122°F (0 to 50°C) in non-condensing conditions 0 to 6550 ft (0 to 2000 m)
Storage Temperature	4 to 176°F (-20 to 80°C)
Measuring Element	Piezoresistive sensor
Power Supply	4 AAA batteries LR03 1.5 V
Battery Life	180 hrs
European Directives	2014/30/EU EMC ; 2014/35/EU low voltage ; 2011/65/EU RoHS II ; 2012/19/EU WEEE
Size	2.8 x 1.3 x 6.1" (71.12 x 33.02 x 154.94 mm)
Weight	7 oz (198.44 g) with batteries

Click here for complete specifications on the E Instruments MP50

What's included with the E Instruments MP50

Portable Handheld Manometer, 0 to ±4 inH₂O
4 x AAA Batteries LR03
Adjustment Certificate

datasheet for the E Instruments MP50 Portable Handheld Manometer, 0 to ± 4 inH2O

Ask a question about E Instruments MP50 Portable Handheld Manometer, 0 to ± 4 inH2O

Customer Reviews for the E Instruments MP50

Description ➕➖

E Instruments MP50 Offers

Features

Has a 2-line display
Easy to use
HOLD function
Pressure
Temperature and humidity
Built-in probe
20 minute auto shut-off

Specifications ➕➖

E Instruments MP50 Specifications

Measuring Units	Pa, mm H₂O, inWg, daPa++
Measuring Range	-10 to 10 mbar / -1000 to 1000 Pa
Accuracy	±0.5 of reading ±0.02 mbar ±0.5 of reading ±2 Pa
Resolution	0.01 mbar / 1 Pa
Response Time	T63 = 0.3 s
Conditions of Use	32 to 122°F (0 to 50°C) in non-condensing conditions 0 to 6550 ft (0 to 2000 m)
Storage Temperature	4 to 176°F (-20 to 80°C)
Measuring Element	Piezoresistive sensor
Power Supply	4 AAA batteries LR03 1.5 V
Battery Life	180 hrs
European Directives	2014/30/EU EMC ; 2014/35/EU low voltage ; 2011/65/EU RoHS II ; 2012/19/EU WEEE
Size	2.8 x 1.3 x 6.1" (71.12 x 33.02 x 154.94 mm)
Weight	7 oz (198.44 g) with batteries
