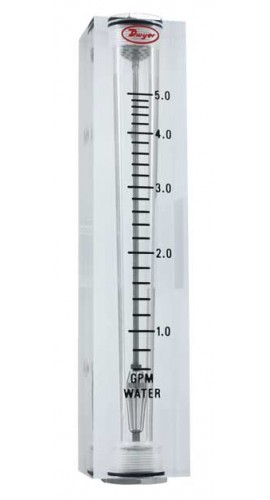

Image is for reference only, refer to product info for complete details.
The direct reading scales are hot stamped into the plastic and will not wear off. Accuracy is ±3% of full scale for VFA models, scales average 4" long.
The direct reading scales are hot stamped into the plastic and will not wear off. Accuracy is ±3% of full scale for VFA models, scales average 4" long.
This product is a special order item which can’t be returned or cancelled.
Range: .5-12 GPH water
| Wetted Materials | |
| Body | Acrylic plastic; O-ring: Buna-N (fluoroelastomer available) |
| Metal Parts | Brass standard, stainless steel optional |
| Float | Stainless steel, black glass, aluminum, K Monel depending on range |
| Temperature & Pressure Limits | |
| Without Valve | 100 psig (6.9 bar) at 150°F (65°C) 150 psig (10 bar) at 100°F (38°C) |
| With Valve | 100 psig (6.9 bar) at 120°F (48°C). |
| Functional Specifications | |
| Accuracy | VFA: 5% of full-scale VFB: 3% of full-scale |
| Process Connection | ⅛" female NPT VFB ranges 85 and 86 have ¼" NPT back connections or ⅜" NPT end connections. |
| General Specifications | |
| Scale Length | 2" (5.1 cm) typical length |
| Mounting Orientation | Mount in vertical position |
| Weight | VFA: 4.0 to 4.8 oz (113 to 136 g) VFB: 7.2 to 8.8 oz (204 to 249 g) |
| Wetted Materials | |
| Body | Acrylic plastic; O-ring: Buna-N (fluoroelastomer available) |
| Metal Parts | Brass standard, stainless steel optional |
| Float | Stainless steel, black glass, aluminum, K Monel depending on range |
| Temperature & Pressure Limits | |
| Without Valve | 100 psig (6.9 bar) at 150°F (65°C) 150 psig (10 bar) at 100°F (38°C) |
| With Valve | 100 psig (6.9 bar) at 120°F (48°C). |
| Functional Specifications | |
| Accuracy | VFA: 5% of full-scale VFB: 3% of full-scale |
| Process Connection | ⅛" female NPT VFB ranges 85 and 86 have ¼" NPT back connections or ⅜" NPT end connections. |
| General Specifications | |
| Scale Length | 2" (5.1 cm) typical length |
| Mounting Orientation | Mount in vertical position |
| Weight | VFA: 4.0 to 4.8 oz (113 to 136 g) VFB: 7.2 to 8.8 oz (204 to 249 g) |
