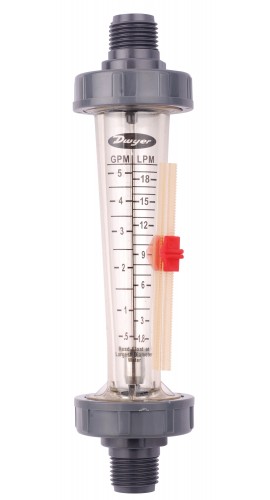

Injection molded, heat and chemically resistant polycarbonate bodies and fittings. Dual scales measuring in both GPM and LPM with 5% accuracy.
Injection molded, heat and chemically resistant polycarbonate bodies and fittings. Dual scales measuring in both GPM and LPM with 5% accuracy.
Features
| Service | Water |
| Range | 2.5 to 25 GPM (10 to 100 LPM) |
| Process Connection | 1" male NPT |
| Wetted Materials | |
|---|---|
| Body | Polycarbonate |
| Flange nut | ABS |
| Float stop | ABS |
| O-rings | Fluoroelastomer |
| Rod & Float | 316SS |
| Connection | PA66 Nylon |
| General Specifications | |
| Pressure Limit | 87 psi (6 bar) at 68°F (20°C) 90° elbow fittings 116 psi (8 bar) at 68°F (20°C) |
| Accuracy | ±5% |
| Weight | 15 oz (425.2 g) |
| Service | Water |
| Range | 2.5 to 25 GPM (10 to 100 LPM) |
| Process Connection | 1" male NPT |
| Wetted Materials | |
|---|---|
| Body | Polycarbonate |
| Flange nut | ABS |
| Float stop | ABS |
| O-rings | Fluoroelastomer |
| Rod & Float | 316SS |
| Connection | PA66 Nylon |
| General Specifications | |
| Pressure Limit | 87 psi (6 bar) at 68°F (20°C) 90° elbow fittings 116 psi (8 bar) at 68°F (20°C) |
| Accuracy | ±5% |
| Weight | 15 oz (425.2 g) |
