Image is for reference only, refer to product info for complete details.

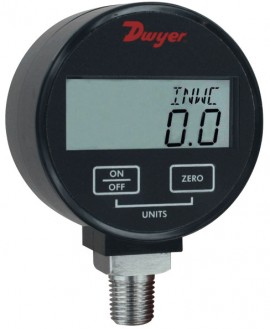

The Series DPGWB digital pressure gages offer 0.5% full-scale-accuracy in a rugged, easy-to-use unit at prices comparable to mechanical gauges. The DPGWB stainless steel wetted material makes it suitable for a wide variety of liquid or gases. The gages feature user-selectable units of measure allowing one gage to be used for a variety of pressure scales.
The Series DPGWB digital pressure gages offer 0.5% full-scale-accuracy in a rugged, easy-to-use unit at prices comparable to mechanical gauges. The DPGWB stainless steel wetted material makes it suitable for a wide variety of liquid or gases. The gages feature user-selectable units of measure allowing one gage to be used for a variety of pressure scales.
Features
Applications
| Service | DPGAB: Air and compatible gases DPGWB: Liquids and compatible gases |
| Wetted Materials | DPGAB: 316L SS, silicone sensor DPGWB: Type 316L SS |
| Housing Materials | ABS plastic |
| Accuracy | ±0.5% F.S. (includes linearity, hysteresis, repeatability) |
| Pressure Limits | 2x pressure range. Vacuum range max. pressure is 30 psig |
| Temperature Limits | 30 to 120°F (-1 to 49°C) |
| Thermal Effect | 0.05% FS/°F |
| Process Connections | ¼" male NPT |
| Size | 2.62" O.D. x 1.52" deep |
| Display | 4-digit LCD (0.425 x 0.234" digits) |
| Power Requirements | 9 V alkaline battery, included, user replaceable |
| Auto Shut-off | 20 minute auto shut-off |
| Weight | 5.6 oz (160 g) |
| Service | DPGAB: Air and compatible gases DPGWB: Liquids and compatible gases |
| Wetted Materials | DPGAB: 316L SS, silicone sensor DPGWB: Type 316L SS |
| Housing Materials | ABS plastic |
| Accuracy | ±0.5% F.S. (includes linearity, hysteresis, repeatability) |
| Pressure Limits | 2x pressure range. Vacuum range max. pressure is 30 psig |
| Temperature Limits | 30 to 120°F (-1 to 49°C) |
| Thermal Effect | 0.05% FS/°F |
| Process Connections | ¼" male NPT |
| Size | 2.62" O.D. x 1.52" deep |
| Display | 4-digit LCD (0.425 x 0.234" digits) |
| Power Requirements | 9 V alkaline battery, included, user replaceable |
| Auto Shut-off | 20 minute auto shut-off |
| Weight | 5.6 oz (160 g) |
