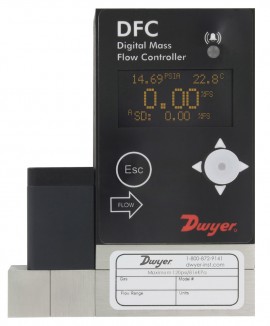

Dwyer DFC-32010-V-ALA2 Digital Flow Controller, 0 to 500 ml/min

Downloads: datasheet manual

Features 0 to 500 ml/min with LED and combines a straight tube sensor with a restrictor flow element to provide accurate readings and control.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

Features

Able to quickly see changes due to fast <20 ms response rate
Simple setup using configuration/calibration software
Works for a variety of application with up to 90 different user selectable gases and gas mixes
Meet application requirements with high accuracy and repeatability
Minimize downtime with self-diagnostics through status LED or OLED indication

Applications

Service	Clean, non-corrosive gases compatible with wetted parts
Pressure Range	0 to 500 ml/min
Pressure Limits	120 psig (8.27 bar)
Accuracy	±(0.5% of reading + 0.2% FS)
Repeatability	±0.2% FS
Response Time	150 ms
Output	0 to 5 V DC
Wetted Materials	316 SS, 416 SS, high temperature polyamide, alumina ceramic, epoxy, silicone, glass, gold FKM O-rings
Relay Rating	Programmable solid state relay
Maximum Particulate Size	20 μm
Temperature Limits	14 to 140°F (-10 to 60°C)
Power Supply	12 to 26 V DC
Process Connections	⅛" compression fitting
Leak Integrity	1 x 10^-9 sccs of helium
Display	2 x 16 character OLED
Digital Interface	RS-232 default (RS-485 display selectable)
Agency Approvals	CE
Dimensions	3.66 x 4.41 x 1.05" (92.96 x 111.76 x 26.67 mm)
Weight	1.4 lbs (0.635 kg)
