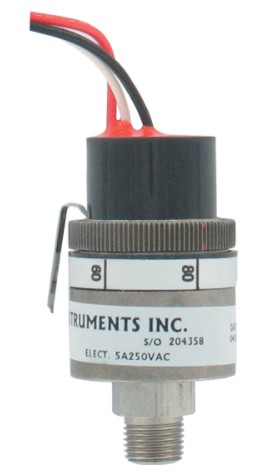

Reliable and easy to use, this pressure switch is readily adjustable and features a locking adjusting ring and indicating pointer. Able to switch for pressure/vacuum alarm/ shutdown or control, this adjustable pressure switch is made from stainless steel to withstand even harsh environments.
Reliable and easy to use, this pressure switch is readily adjustable and features a locking adjusting ring and indicating pointer. Able to switch for pressure/vacuum alarm/ shutdown or control, this adjustable pressure switch is made from stainless steel to withstand even harsh environments.
Rugged and versatile, this pressure switch comes complete with 12" (30 cm) wire leads sealed with epoxy for additional protection.
Features
Applications
| Service | Compatible liquids or gases |
| Wetted Materials | Capsule: 17-7 PH SS Fitting: 303 stainless steel |
| Temperature Limits | -65 to 225°F (-54 to 107°C), a set point change of up to 2% when used below -10°F (-23°C) or above 125°F (52°C) |
| Pressure/Vacuum Limits | 150% of range |
| Switch Type | SPDT snap action |
| Electrical Ratings | 5 A at 250 VAC, 3 A at 28 VDC |
| Electrical Connections | 3-wire, 20 AWG insulated with PVC, 12" (30 cm) length |
| Process Connection | ⅛" male NPT |
| Set Point | Field adjustable |
| Cycling | Not to exceed 20 CPM |
| Sensor Element: | Capsule |
| Set Point Range Psi (bar) | Decreasing: 3 to 96.5 (0.21 to 6.7) Increasing: 4.5 to 100 (0.31 to 6.9) |
| Agency Approvals | UR |
| Weight: | 3 oz (85 g) |
| Service | Compatible liquids or gases |
| Wetted Materials | Capsule: 17-7 PH SS Fitting: 303 stainless steel |
| Temperature Limits | -65 to 225°F (-54 to 107°C), a set point change of up to 2% when used below -10°F (-23°C) or above 125°F (52°C) |
| Pressure/Vacuum Limits | 150% of range |
| Switch Type | SPDT snap action |
| Electrical Ratings | 5 A at 250 VAC, 3 A at 28 VDC |
| Electrical Connections | 3-wire, 20 AWG insulated with PVC, 12" (30 cm) length |
| Process Connection | ⅛" male NPT |
| Set Point | Field adjustable |
| Cycling | Not to exceed 20 CPM |
| Sensor Element: | Capsule |
| Set Point Range Psi (bar) | Decreasing: 3 to 96.5 (0.21 to 6.7) Increasing: 4.5 to 100 (0.31 to 6.9) |
| Agency Approvals | UR |
| Weight: | 3 oz (85 g) |
