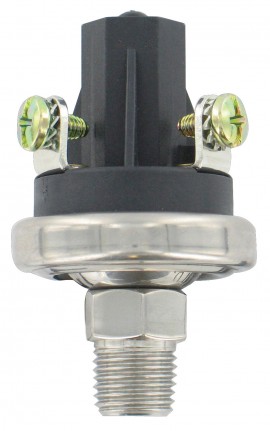

Simple, setpoint field adjustment. Excellent setpoint integrity. Features a base made of 304SS and a range of 91-150 ±10 (6.27-10.35 ±0.69).
Simple, setpoint field adjustment. Excellent setpoint integrity. Features a base made of 304SS and a range of 91-150 ±10 (6.27-10.35 ±0.69).
Features
| Service | Air, motor oils, transmission oils, jet fuels, and similar hydrocarbon media |
| Wetted Materials | Base: brass or 304SS Diaphragm: polmide film |
| Temperature Limits | -40 to 248°F (-40 to 120°C) |
| Pressure Limits | Operating: 150 psi for 0.5-24 psi setpoint range, 250 psi for 25-150 psi setpoint range Proof: 500psi Burst: 700 psi for 0.5-24 psi setpoint range, 1250 psi for 25-150 psi setpoint range Burst: 700 psi for 0.5-24 psi setpoint range, 1250 psi for 25-150 psi setpoint range |
| Repeatability | ±10% of setpoint |
| Switch type | SPDT snap action |
| Electrical Rating | Resistive: 15A at 6VDC, 8A at 12V DC, 4A at 24V DC Inductive: 1A at 120V AC, 0.5A at 240V AC |
| Electrical Connections | #8-32 screw terminals |
| Process Connection | 1/4" (0.64 cm) MNPT |
| Enclosure Rating | IP65, weatherproof |
| Weight | 0.13 lbs (0.06 kg) |
Click on a category to view a selection of compatible accessories with the Dwyer A6-853221 Pressure Switch, 91-150 ±10 psi (6.27-10.35 ±0.69 bar), 304SS.
