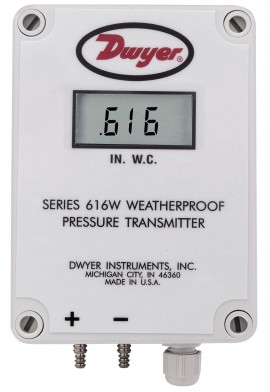

Senses very low pressures of air and non-combustible, compatible gases and sends a standard 4-20 mA output signal. Positive, negative and differential pressures can be measured within a full span accuracy of ±0.50%.
Senses very low pressures of air and non-combustible, compatible gases and sends a standard 4-20 mA output signal. Positive, negative and differential pressures can be measured within a full span accuracy of ±0.50%.
Features
Applications
| Service | Air and non-combustible, compatible gases |
| Wetted Materials | Consult factory |
| Accuracy | ±0.50% F.S., display accuracy ±0.5% |
| Stability | ±1% F.S./yr |
| Temperature Limits | 0 to 140°F (-17.8 to 60°C) |
| Compensated Temperature Limits | 20 to 120°F (-6.67 to 48.9°C) |
| Thermal Effect | ±0.02% F.S./°F (0.036% F.S./°C) |
| Power Requirements | 12 to 30 VDC (2-wire) |
| Output Signal | 4 to 20 mA |
| Zero and Span Adjustments | Digital, Push Button Adj |
| Loop Resistance | DC: 0 to 900 Ω maximum |
| Current Consumption | DC: 38 mA maximum |
| Electrical Connections | Screw-type terminal block |
| Process Connections | Barbed, dual size to fit ⅛" and 3⁄16" (3.12 and 4.76 mm) I.D. rubber or vinyl tubing |
| Enclosure Rating | NEMA 4X (IP66) |
| Mounting Orientation | Vertical, consult factory for other position orientations |
| Weight | Without LCD 17 oz (482 g) With LCD 18 oz (510 g) |
| Agency Approvals | CE |
