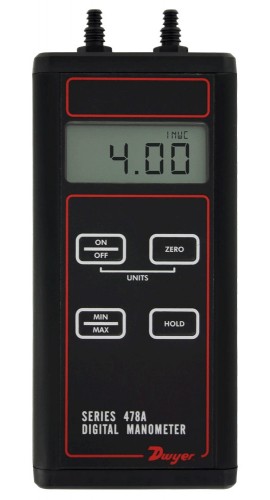

Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.)

Model: 478A-0 | UPC: 691045754784

Be the first to review this product

Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.)-

Downloads: datasheet manual

More Dwyer Products

Ask an Expert

Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.)

Model: 478A-0 | UPC: 691045754784

Be the first to review this product

Measure Positive and Negative Pressures. One-Button Auto-Zero Function.

Sale Price	$280.91 USD
Regular Price	$307.00 USD
Availability	2 to 3 Weeks3 to 4 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.)

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG2) for only $215.00 USD

Traceable Calibration Certificate for your Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.)

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG2) for only $215.00 USD

Dwyer 478A-0 MANOMETER, -4.00 TO 4.00 W.C.

Auto Power Off.
Large, Easy-to-Read Display.
Extruded Aluminum Case.
Instant Selection from up to Eight English/Metric Units

Specifications
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1.5% F.S. @ 72°F (22.2°C). Includes linearity and repeatability.
Pressure Hysteresis: ±0.1% of F.S.
Pressure Limits: 5 psig (.34 bar).
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Thermal Effect: 0.05% F.S./°F.
Display: 4 digit LCD (.425"H x .234"W digits).
Power Requirements: 9V alkaline battery. Battery included but not connected.
Process Connections: Barbed connection for use with 3/16" or 1/4" I.D. tubing.
Weight: 10.8 oz (306 g).
Agency Approvals: CE.

Dwyer 478A-0 Specifications

Service	Air and compatible gases
Accuracy	±1.5% FS at 72°F (22.2°C). Includes linearity and repeatability
Pressure Hysteresis	±0.1% FS
Pressure Limits	5 psig (0.74 bar)
Temperature Limits	0 to 140°F (-17.8 to 60°C)
Compensated Temperature Limits	32 to 104°F (0 to 40°C)
Thermal Effect	0.05% FS/°F
Display	4 digit LCD (0.425 x 0.234" digits)
Power Requirements	9 V alkaline battery, installed non-functional, user replaceable
Process Connections	For use with 3/16" or 1/4" ID tubing
Weight	10.8 oz (306 g)
Agency Approvals	CE

Click here for complete specifications on the Dwyer 478A-0

What's included with the Dwyer 478A-0

Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.)

datasheet for the Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.) manual for the Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.)

Ask a question about Dwyer 478A-0 Digital Differential Manometer (-4 to 4"w.c.)

Customer Reviews for the Dwyer 478A-0

Description ➕➖

Dwyer 478A-0 MANOMETER, -4.00 TO 4.00 W.C.

Auto Power Off.
Large, Easy-to-Read Display.
Extruded Aluminum Case.
Instant Selection from up to Eight English/Metric Units

Specifications ➕➖

Dwyer 478A-0 Specifications

Service	Air and compatible gases
Accuracy	±1.5% FS at 72°F (22.2°C). Includes linearity and repeatability
Pressure Hysteresis	±0.1% FS
Pressure Limits	5 psig (0.74 bar)
Temperature Limits	0 to 140°F (-17.8 to 60°C)
Compensated Temperature Limits	32 to 104°F (0 to 40°C)
Thermal Effect	0.05% FS/°F
Display	4 digit LCD (0.425 x 0.234" digits)
Power Requirements	9 V alkaline battery, installed non-functional, user replaceable
Process Connections	For use with 3/16" or 1/4" ID tubing
Weight	10.8 oz (306 g)
Agency Approvals	CE
