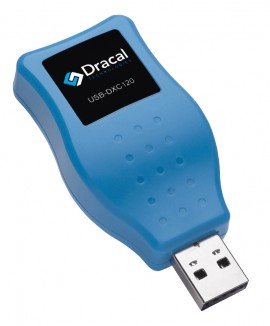

Dracal VCP-DXC120 Small Carbon Dioxide (CO2) Sensor, 400 to 10,000 ppm

Model: VCP-DXC120 | Order No: 603082

Dracal VCP-DXC120 Small Carbon Dioxide (CO2) Sensor, 400 to 10,000 ppm

Model: VCP-DXC120 | Order No: 603082

Designed to detect carbon dioxide (CO2) indoor levels, this sensor is ideal for environments with moderate ambient conditions. Moreover, this compact detector operates with the instrument in virtual COM port mode and features an integrated advanced (NDIR) technology, enabling years of accurate gas level monitoring.

Designed to detect carbon dioxide (CO2) indoor levels, this sensor is ideal for environments with moderate ambient conditions. Moreover, this compact detector operates with the instrument in virtual COM port mode and features an integrated advanced (NDIR) technology, enabling years of accurate gas level monitoring.

Your Price $164.99 USD
Availability 2 to 3 Weeks
Quantity

Dracal VCP-DXC120 Offers

The DXC120 is a compact and high-performance carbon dioxide (CO2) detector, ideal for monitoring CO2 levels in environments such as homes, workplaces, or any other spaces with moderate conditions. Like all instruments in the DXC series, it is based on advanced non-dispersive infrared (NDIR) technology, ensuring high precision and exceptional stability with its integrated automatic calibration mechanism that compensates for long-term drift. Manual calibration can also be easily performed with a single click via our software for added flexibility.

It offers a typical accuracy of ±(30 ppm + 3%) and repeatability of ±10 ppm, with temperature stability of 2.5 ppm/°C, ensuring consistent and reliable measurements even with temperature variations. With an operational lifespan of 15 years and individual factory calibration, this device is a durable and reliable investment for any application requiring rigorous CO2 monitoring.

Like all Dracal measurement instruments, the DXC120 is compatible with free software tools, making it an essential component of a DAQ solution. For those who wish to integrate the DXC120 into their system, there are two options available: command line tools and VCP mode (VCP- model, sold separately). If you prefer a graphical interface, DracalView is the appropriate choice.

Features

  • NDIR CO2 sensor
  • Freely switch between USB and VCP (COM protocol) mode
  • Small size to fit anywhere
  • Detects moderate CO2 levels
  • Installation time: Less than 3 minutes
  • Free DAQ software: Real-time data visualization and logging
  • Data integration: Command-line tools for direct data access and integration

Free Data Logging software:

  • Real-time on-screen graphing and logging with DracalView
  • Operates under Windows (Win7/8/10 64 and 32-bit), Mac OS X, and Linux
  • Configurable log file format with log interval down to 0.1 second
  • Configurable units (°F, °C, K...)
  • Simultaneous use of an unlimited Dracal sensors supported, depending on the computer's performance
  • Command-line tool Dracal-USB-get also available (packaged with DracalView)
  • Use it in your own application easily! Code samples are provided for many programming languages
  • Usable with LabView™

Applications

  • Indoor air quality
  • Warehouses
  • Work/school environment
  • Research and development
  • Robotics
  • Server rooms
  • Manufacturing facilities
  • Building automation
  • Workplace
  • Public spaces
  • Transport station
  • Warehouses
  • Engineering

Dracal VCP-DXC120 Specifications

Carbon Dioxide (CO2)
CO2 Detection Range Typ.: 400 to 10,000 ppm
Accuracy Typ.: ±30 ppm + 3% ppm
Drift: Over lifetime (400 to 10,000 ppm): ±50 ppm
ADC Resolution 24 bits
Sensor Lifetime 15 years, operating conditions
Repeatability 400 to 10,000 ppm ±10 ppm
Temperature Stability 32 to 122°F (0 to 50°C): 2.5 (ppm/°C)
Samples Rate 1 second
Response Time t63%: 25 seconds
Factory Calibrated Yes, individually
Calibration Baseline >400 ppm, ambient air: 420 ppm approximately
Number of IR Channel 2
General Specifications
Voltage Powered through a USB port, 5 V
Current Consumption At 5V 30 mA approximately
Peak, 0.5s: 85 mA
Colour Cyan
Operating Temperature: 32 to 122°F (0 to 50°C)
Relative humidity: 10 to 90 % RH, non-condensing
Material ABS plastic
IP Rating 51
Fully Linearized Yes
Sensors Technology NDIR
Long-Term Stability Yes
Temperature Compensated Yes
Weight 0.74 oz (21 g) without cable
Click here for complete specifications on the Dracal VCP-DXC120

What's included with the Dracal VCP-DXC120

  • USB Carbon Dioxide (CO2) Sensor
  • Quick Installation Guide
  • Data Acquisition Solution to Download
  • Two-Year Warranty
