Digi-Sense 08117-99 Bendable RTD Probe, 100 Ω, 18"

Model: 08117-99 | Order No: WD-08117-99

Be the first to review this product

Digi-Sense 08117-99 Bendable RTD Probe, 100 &Omega;, 18"-

Downloads: datasheet

More Digi-Sense Products

Ask an Expert

Digi-Sense 08117-99 Bendable RTD Probe, 100 Ω, 18"

Model: 08117-99 | Order No: WD-08117-99

Be the first to review this product

This bendable RTD probe features a stainless-steel sheath for durability. It comes in a compact design.

Sale Price	$146.09 USD
Regular Price	$188.50 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Digi-Sense 08117-99 Offers

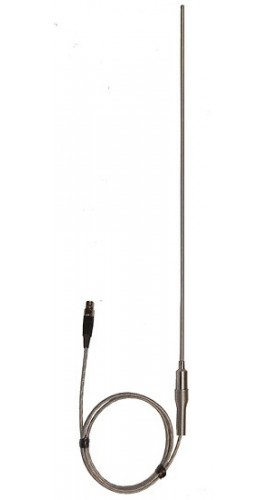

The Digi-Sense 08117-99 Bendable RTD Probe is more compact and flexible than the average RTD probe, but is still just as accurate and reliable. It boasts a 3-pin design and is made with durable stainless steel.

Features

Supplies accurate, consistent results
Bendable, compact design is easy to use
Time constant is 3 seconds or greater
Resistance at ice point is 100 Ω
Alpha coefficient is 0.003850 Ω/Ω/°C (DIN IEC 751)
Built with a 304 stainless-steel sheath
Note: Time constant is the time required to reach 63.2% of the new reading; to determine how long it will take to reach 99% of the new reading multiply the time constant by 5
Note: Temperature range is for the probe tip only

Digi-Sense 08117-99 Specifications

Probe	RTD
Temperature Range	-58 to 932°F (-50 to 500°C)
Temperature Accuracy	±1.1°C, ±0.12% of reading
Connector	3-pin
Sheath Material	304 stainless steel
Sheath Length	18" (45.72 cm)
Cable Type	Braided stainless steel
Cable Length	3' (1 m)

Click here for complete specifications on the Digi-Sense 08117-99

What's included with the Digi-Sense 08117-99

Digi-Sense 08117-99 Bendable RTD Probe, 100 Ω, 18"

datasheet for the Digi-Sense 08117-99 Bendable RTD Probe, 100 Ω, 18"

Ask a question about Digi-Sense 08117-99 Bendable RTD Probe, 100 Ω, 18"

Customer Reviews for the Digi-Sense 08117-99

Description ➕➖

Digi-Sense 08117-99 Offers

Features

Supplies accurate, consistent results
Bendable, compact design is easy to use
Time constant is 3 seconds or greater
Resistance at ice point is 100 Ω
Alpha coefficient is 0.003850 Ω/Ω/°C (DIN IEC 751)
Built with a 304 stainless-steel sheath
Note: Time constant is the time required to reach 63.2% of the new reading; to determine how long it will take to reach 99% of the new reading multiply the time constant by 5
Note: Temperature range is for the probe tip only

Specifications ➕➖

Digi-Sense 08117-99 Specifications

Probe	RTD
Temperature Range	-58 to 932°F (-50 to 500°C)
Temperature Accuracy	±1.1°C, ±0.12% of reading
Connector	3-pin
Sheath Material	304 stainless steel
Sheath Length	18" (45.72 cm)
Cable Type	Braided stainless steel
Cable Length	3' (1 m)
