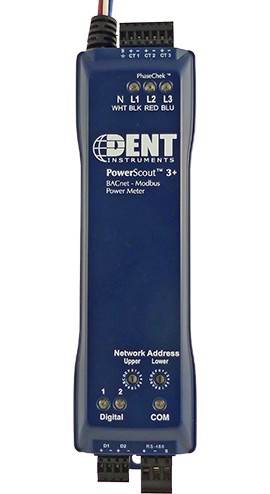

Dent PS3-D-I PowerScout3+ Power Metering Transducer

Model: PS3P-I

Dent PS3-D-I PowerScout3+ Power Metering Transducer

Model: PS3P-I

Three phase power metering transducer - international version.

Three phase power metering transducer - international version.

This product has been discontinued. Click here for the replacement model(s).


Dent PS3P-I PowerScout3+ Three-Phase Power Metering Transducer with Indoor Enclosure

The Dent PS3P-I PowerScout3+ is a single-point 3-phase networked submeter for international use, with an enclosure. The PowerScout3+ is able to communicate via either Modbus or BACnet, for quick and accurate readings of energy consumption. This power meter captures over 50 measured energy parameters, including voltage, current, power, energy, and more on both single- and three-phase systems.

The PowerScout3+ features DENT's PhaseChek, which includes an LED indicator to confirm correct CT-to-phase installation. With it's compact design, connectivity, and ease-of-installation, the PowerScout3+ is ideal for use in a variety of environments for gathering energy consumption data-helping you monitor usage and cut costs.

Technical Specifications:

  • Service Type: Single Phase, Three Phase-Four Wire (WYE), Three Phase-Three Wire (Delta)
  • Power: From L1 Phase to L2 Phase. 80-600VAC CAT III 50/60Hz, 70mA Max. Non-user replaceable .5 Amp internal fuse protection
  • Power Out: PS24: Unregulated 5VDC output, 500 mA Max
  • Voltage Channels*: 80-346 Volts AC Line-to-Neutral, 600V Phase-to-Phase, CAT III
  • Current Channels: 3 or 24 channels, 0.67 VAC max, 333 mV CTs, 0-5,000 Amps depending on CT
  • Maximum Current Input: 200% of current transducer rating (mV CTs) Measure up to 5000A with RoCoil CTs
  • Measurement Type: True RMS using high-speed digital signal processing (DSP)
  • Line Frequency: 50/60 or 400 Hz
  • Waveform Sampling: 12 kHz
  • Parameter Update Rate: PS3: .5 seconds, PS24: 1 second
  • Measurements: Volts, Amps, kW, kWh, kVAR, kVARh, kVA, kVAh, aPF, dPF.
  • Accuracy: PS3: 0.2% (<0.1% typical) ANSI C12.20-2010 Class 0.2
  • PS24: 1% (<0.5% typical) for V, A, kW, kVAR, kVA, PF.
  • Resolution: 0.01 Amp, 0.1 Volt, 0.01 watt, 0.01 VAR, 0.01 VA, 0.01 Power Factor depending on scalar setting
  • Led Indicators: Bi-color LEDs (red and green): 1 LED to indicate communication, 3 LEDs for correct CT-to-phase installation (per meter element).
  • Pulse Output: Open Collector, 75mA max current, 40V max open voltage

Communication Specifications:

  • Direct PS3: User selectable Modbus or BACnet Master Slave Token
  • Passing protocol (MS/TP). Ethernet.
  • PS24: Modbus or BACnet MS/TP
  • Max Distance: 1200 meters with Data Range of 100K bits/second or less
  • Baud Rate: 9600 (Modbus default), 19200, 38400, 57600, 76800 (BACnet default), 115200
  • Data Bits: 8
  • Parity: None, Even, Odd
  • Stop Bit: 2, 1
  • Data Formats: Modbus or BACnet

Mechanical Specifications:

  • Operating Temperature: -7 to 60°C (-20 to 140°F)
  • Humidity: 5% to 95% non-condensing
  • Enclosure PS3: ABS Plastic, 94-V0 flammability rating; PS24 (optional): PC UL 94 5V
  • Weight PS3: 357 g (12.6 ounces), exclusive of CTs; PS24 Without Enclosure: 369 g (13 oz); PS24 With Enclosure: 610 g (21.5 oz)
  • Dimensions PS3: 21.8 x 5.8 x 4.0 cm (8.6" x 2.3" x 1.6"); PS24 Without Enclosure: 25.5 x 16.5 x 3.2 cm (10.0" x 6.5" x 1.3"); PS24 With Enclosure: 27.8 x 18.8 x 13.0 cm (10.9" x 7.4" x 5.1")

Viewpoint Software Specifications:

  • Operating System: Windows 8, Windows 7 (32/64 bit), Windows Vista (32/64 bit), or Windows XP
  • Communications: USB to RS485 Adapter. One USB Port Required. Ethernet

What's included with the Dent PS3P-I

  • Dent PS3-D-I PowerScout3+ Power Metering Transducer
