A complete and convenient portable power metering solution for load studies and energy audits, this kit includes the line-powered ELITEpro XC of your choice, plus quick-to-install flexible RoCoil CTs that measure from 0.5 right up to 6500A.
A complete and convenient portable power metering solution for load studies and energy audits, this kit includes the line-powered ELITEpro XC of your choice, plus quick-to-install flexible RoCoil CTs that measure from 0.5 right up to 6500A.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
A dependable and versatile tool for measuring energy usage

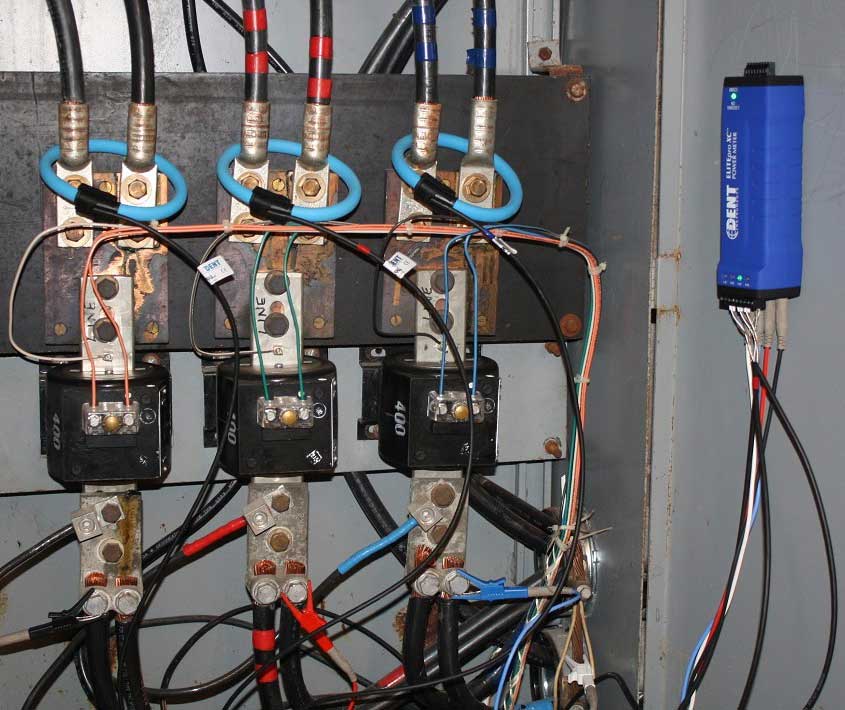

The ELITEpro XC is a complete solution for pinpointing electric usage and quantifying energy usage. It is capable of measuring, storing, and analyzing electrical consumption data which is derived from the voltage and current inputs. The ELITEpro XC uses direct connections to each phase of the voltage and various interchangeable CT options such as split-core current transformers or flexible RoCoils™ (for large loads or large cables and bussbars) to monitor current on each phase.
These meters can capture kWh/kW energy and demand data as well as virtually all relevant energy parameters for diagnostics and monitoring on three-phase or single-phase circuit installations. Electrical load diagnostic parameters, such as displacement power factor, are captured in addition to energy and demand values.
The ELITEpro XC's flexibility, size, and ease-of-use make it the ideal tool for gathering detailed consumption information in commercial, industrial, government and retail environments.
Four Analog Input Channels: Correlate your consumption with environmental conditions.
New to the ELITEpro XC are 4 analog input channels which can be configured for voltage or current input used in any combination among channels. Analog inputs are especially helpful when used in conjunction with power measurements to correlate the consumption of electricity with environmental, HVAC/R plant performance, or other process conditions. Typical uses might include logging ambient temperature, building temperatures, solar insolation, tank pressures, duct flows, etc. Obtain this valuable data using just one meter: the ELITEpro XC.
Features
Applications
Connections
- The Ethernet and USB ports are standard equipment
Connect with USB - Connect directly to the ELITEpro XC via the included A-to-B USB cable.
Connect with Ethernet - Connect remotely to the logger via 10/100MB Ethernet using DHCP or static IP to manually or automatically download data or reconfigure.
- Use optional WiFi to setup, record and view data remotely

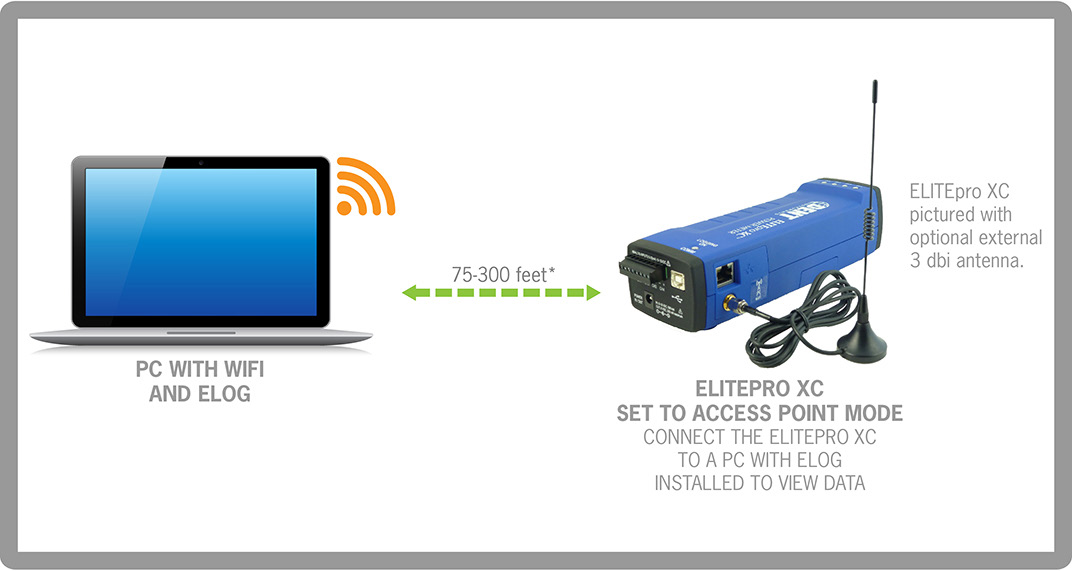

Connect with Wifi - The optional Wi-Fi interface allows the meter to be connected to a Wi-Fi network and accessed from any PC on the network using ELOG software. Alternatively, configure the ELITEpro XC as its own Wi-Fi hotspot and view real-time data using a Wi-Fi enabled PC, tablet, or smart phone via a web browser from up to 300 ft. away.
- Optional WiFi with external antenna provides 3dbi gain

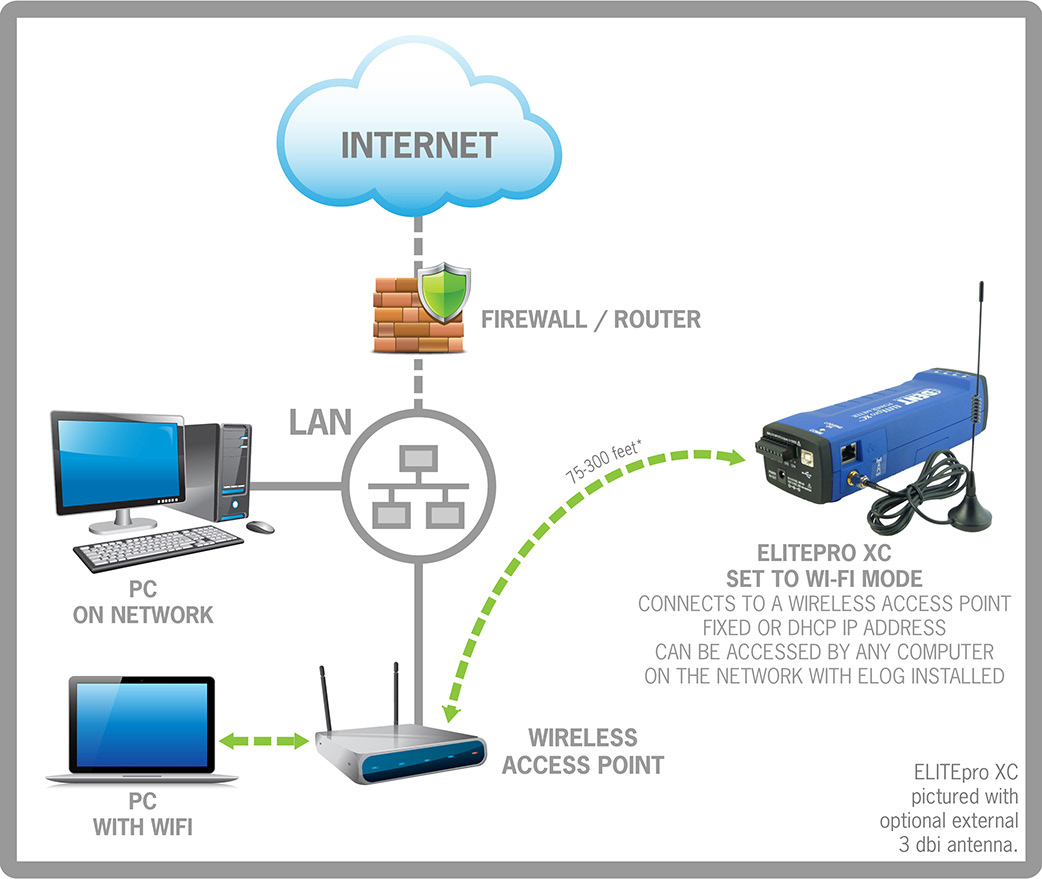

Connect to Wifi with Antenna - Two antenna options are available: internal antenna (75-300 ft.) or external 3 dbi antenna (150-300 ft). Use ELOG to switch between WiFi and QuickView™ access point mode
- Optional Bluetooth provides short-range wireless configuration
Connect with BlueTooth® - Save time and meet safety requirements by communicating with an ELITEpro XC without removing the electrical panel door. In addition to the standard USB and Ethernet ports, ELITEpro XC instruments may be equipped with an optional Bluetooth® wireless technology interface, which will allow a PC with a Bluetooth® wireless technology adapter running ELOG to connect to the ELITEpro XC over short distances (10-100 feet typical) to send setup tables or download data. PC must support Serial Port Profile (SPP)
Current Transformers
An Industry-Leading Selection of Quality Transformers
Choose from an interchangeable selection of CT options including split-core, clamp-on, hinged and flexible RoCoil™ types. The ELITEpro XC comes with an embedded Rogowski coil CT amplifier/integrator circuit so there is no need to provide external power when using our line of flexible RoCoil™ CTs.
All DENT CTs are internally shunted for intrinsically safe operation on energized conductors. Special high-accuracy CTs are available for existing CT secondary monitoring. The ELITEpro XC can monitor up to four single-phase loads, two three-phase (3-wire) Delta loads or one three-phase (4-wire) WYE load.
Case Study- ELITEpro XC: A Key Tool for Auditing Compressed Air Systems
| Technical | |
| Service Type | Single Phase (two wire or three wire), Three Phase-Four Wire (WYE), Three Phase-Three Wire (Delta), DC Systems (Solar/Battery) |
| Accuracy | Better than 1% (<0.2% typical) for V, A, kW, kVAR, kVA, PF, Analog |
| Voltage Channels | 3 channels, CAT III, 0-600 VAC (line-to-line) or 600 VDC |
| Current Channels | 4 channels, .67 VAC max, ± 1 VDC. Ideal for 333 mV full scale CTs |
| Maximum Current Input | External transducer dependent. 200% of current transducer rating (mV CTs) Measure up to 6000A with RoCoil CTs. |
| Measurement Type | True RMS using high-speed digital signal processing (DSP) |
| Line Frequency | DC/50/60/400 Hz* |
| Waveform Sampling | 12 kHz |
| Channel Sampling Rate | .125 seconds |
| Integration Period | 1, 3, 15, 30 seconds; 1, 2, 5, 10, 15, 20, and 30 minutes; 1 and 12 hours, 1 day |
| Energy Measurements | Volts, Amps, Amp-Hrs (Ah), kW, kWh, kVAR, kVARh, kVA, kVAh, Displacement Power Factor (dPF). All parameters for each phase and for system total. |
| Analog Measurements | 0-10 Volts, 0 or 4-20 mA current loop. Non-isolated, external power for current loop. User scaling for sensor reporting in physical units. |
| Resolution | 0.01 Amp, 0.1 Volt, 1 Watt, 1 VAR, 1 VA, 0.01 PF, 0.01 ANA |
| LED Indicators | Tri-color (red, green, blue): 1 LED indicates communication (blue for wireless, Bluetooth® or Ethernet), 4 LEDs for correct phasing (PhaseChek™). |
| Power | |
| Line-Power | From L1 Phase to L2 Phase. 80-600V (AC or DC) CAT III DC/50/60/400 Hz, 125 mA, 5 W, or 10 VA max. Non-user replaceable .5 Amp internal fuse protection. |
| Power In | 6-10 VDC, 500 mA |
| Power Out | 6 VDC, 200 mA max |
| Communications | |
| USB (Standard) | USB standard (Type B). 1.8 M (6 ft) A-to-B USB Cable (included) |
| Ethernet (Standard) | Standard RJ-45 Connector supports 10/100 MB Ethernet over Cat 5 or better. Configure for DHCP or Static IP. |
| Bluetooth Wireless Technology (Optional) | Internal antenna with 10-100 ft range (typical). Requires Bluetooth® wireless technology adapter on Windows PC. Adapter must support the Serial Port Profile (SPP). |
| Wi-Fi Adapter† (optional) | Wi-Fi option available as two separate configurations:
|
| Mechanical | |
| Operating Temperature | -7 to + 60°C (20 to 140°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Enclosure Type | ABS plastic, 94-V0 flammability rating |
| Weight | 340 g (12 ounces) |
| Dimensions | 21.6 x 6.3 x 4.7 cm (8.5" x 2.5" x 1.9") |
| Technical | |
| Service Type | Single Phase (two wire or three wire), Three Phase-Four Wire (WYE), Three Phase-Three Wire (Delta), DC Systems (Solar/Battery) |
| Accuracy | Better than 1% (<0.2% typical) for V, A, kW, kVAR, kVA, PF, Analog |
| Voltage Channels | 3 channels, CAT III, 0-600 VAC (line-to-line) or 600 VDC |
| Current Channels | 4 channels, .67 VAC max, ± 1 VDC. Ideal for 333 mV full scale CTs |
| Maximum Current Input | External transducer dependent. 200% of current transducer rating (mV CTs) Measure up to 6000A with RoCoil CTs. |
| Measurement Type | True RMS using high-speed digital signal processing (DSP) |
| Line Frequency | DC/50/60/400 Hz* |
| Waveform Sampling | 12 kHz |
| Channel Sampling Rate | .125 seconds |
| Integration Period | 1, 3, 15, 30 seconds; 1, 2, 5, 10, 15, 20, and 30 minutes; 1 and 12 hours, 1 day |
| Energy Measurements | Volts, Amps, Amp-Hrs (Ah), kW, kWh, kVAR, kVARh, kVA, kVAh, Displacement Power Factor (dPF). All parameters for each phase and for system total. |
| Analog Measurements | 0-10 Volts, 0 or 4-20 mA current loop. Non-isolated, external power for current loop. User scaling for sensor reporting in physical units. |
| Resolution | 0.01 Amp, 0.1 Volt, 1 Watt, 1 VAR, 1 VA, 0.01 PF, 0.01 ANA |
| LED Indicators | Tri-color (red, green, blue): 1 LED indicates communication (blue for wireless, Bluetooth® or Ethernet), 4 LEDs for correct phasing (PhaseChek™). |
| Power | |
| Line-Power | From L1 Phase to L2 Phase. 80-600V (AC or DC) CAT III DC/50/60/400 Hz, 125 mA, 5 W, or 10 VA max. Non-user replaceable .5 Amp internal fuse protection. |
| Power In | 6-10 VDC, 500 mA |
| Power Out | 6 VDC, 200 mA max |
| Communications | |
| USB (Standard) | USB standard (Type B). 1.8 M (6 ft) A-to-B USB Cable (included) |
| Ethernet (Standard) | Standard RJ-45 Connector supports 10/100 MB Ethernet over Cat 5 or better. Configure for DHCP or Static IP. |
| Bluetooth Wireless Technology (Optional) | Internal antenna with 10-100 ft range (typical). Requires Bluetooth® wireless technology adapter on Windows PC. Adapter must support the Serial Port Profile (SPP). |
| Wi-Fi Adapter† (optional) | Wi-Fi option available as two separate configurations:
|
| Mechanical | |
| Operating Temperature | -7 to + 60°C (20 to 140°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Enclosure Type | ABS plastic, 94-V0 flammability rating |
| Weight | 340 g (12 ounces) |
| Dimensions | 21.6 x 6.3 x 4.7 cm (8.5" x 2.5" x 1.9") |
