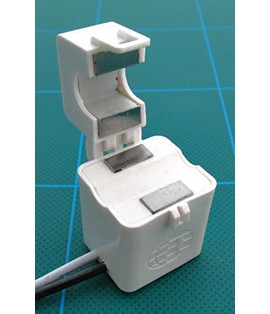

Dent CT-HSC-050-U Mini Hinged Current Transformer, 50A

Model: CT-HSC-050-U

Dent CT-HSC-050-U Mini Hinged Current Transformer, 50A

Model: CT-HSC-050-U

Features a high accuracy over a wide range with a superior phase shift that is ideal for areas where space is limited such as when metering multiples loads within an electrical panel. Offers a 50A amp rating.

Features a high accuracy over a wide range with a superior phase shift that is ideal for areas where space is limited such as when metering multiples loads within an electrical panel. Offers a 50A amp rating.

Sale Price $23.63 USD
Regular Price $25.00 USD
Availability 8 in Stock
Quantity

Add In-House Traceable Calibration to your CT-HSC-050-U

Add In-House Traceable Calibration to your CT-HSC-050-U


Dent CT-HSC-050-U Offers

Features

  • 0.4" (10mm) opening
  • High accuracy of <0.5% over a wide dynamic range
  • Excellent phase shift
  • Ferrule CT leads are compatible with all Dent power meters including ElitePro Series and PowerScout Series instruments
  • cURus
  • CE

Applications

  • Current measurement
  • Energy metering
  • Load surveys
  • Demand metering
  • Energy research
  • Submetering

Dent CT-HSC-050-U Specifications

Key Specifications
Window Size 0.4" (10 mm)
Current Range 0.25 to 80A AC
Output 333 mV @ 50 A AC
6.66 mV/A AC
Ratio Error <0.5% from 0.25 to 80A AC (typical)
Phase Error <1.5° from 1 to 80A AC
<2° from 0.25 to 1A AC
Electrical
Output 333 mV @ 50 A
Wire Polarity White = Hi, positive (+)
Black = Low, negative (-)
Phasing Orientation Arrow on case points toward load
Frequency Range 50 to 400 Hz
Mechanical
Case Material White Nylon, UL 94 V‐0
Leads 2.4 m (8'), 600V, 20 gauge
Working Temperature 5 to 140°F (‐15 to 60°C)

What's included with the Dent CT-HSC-050-U

  • Dent CT-HSC-050-U Mini Hinged Current Transformer, 50A
