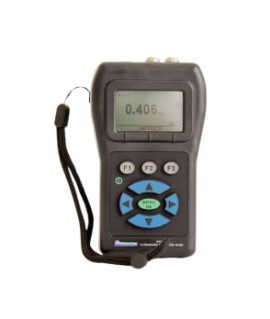

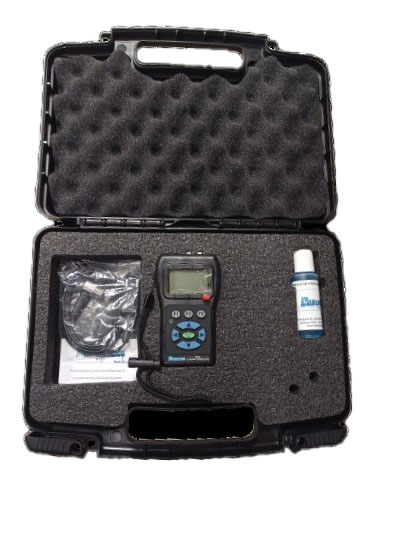

Mid-range handheld ultrasonic thickness gauge with Echo-to-Echo capability, auto-calibration, gain and velocity modes, and vibration alarm. Includes 5 MHz transducer, couplant, batteries, and carrying case.
Mid-range handheld ultrasonic thickness gauge with Echo-to-Echo capability, auto-calibration, gain and velocity modes, and vibration alarm. Includes 5 MHz transducer, couplant, batteries, and carrying case.
Features
Applications
| Thickness Range | 0.02 to 20" (0.50 to 508 mm) in steel, depending on material, temperature and transducer selection |
| Material Velocity Calibration Range | 0.0200 - 0.7362 in/uS (0.508 - 18.699 mm/uS) |
| Temperature | Gauge Operating: -4 to 122°F (-20 to 50°C) High temperature transducers available for material temperatures from -5 to 950°F (-20.5 to 510° C) |
| Battery Life | Up to 50 hours (20 hours with backlight on) |
| Battery Type | 2 "AA" Alkaline |
| Display | 132 X 64 Graphics LCD monochrome, sunlight readable |
| Language Support | Multi language of English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, Hungarian and Chinese on select models |
| Information Displays | Loss of signal (LOS), min, max, large reading while displaying min at the same time, velocity, zero, calibration, units, freeze, unfreeze, % battery life remaining, gain - low, std, high, echo to echo symbol |
| Resolution | 0.001" (0.01 mm), 0.01" (0.1mm) user selectable |
| Probe Recognition | Via a pick list from a menu |
| Delay Line Auto Zero Measurement | Auto at power up with listed numeric value. Ideal for correcting delay line wear/curvature and for transducer acoustic drift at elevated temperatures |
| Package | IP54 rated Custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing |
| Bandwidth | 0.5 to 20 MHz (-3dB) |
| Units | English/Metric/Microseconds |
| Gain | Low, Standard and High for varying test conditions (for gauges without a waveform) or 1 dB steps from 20 to 90 dB or Automatic Gain Control (AGC) for gauges with a waveform |
| Alarms | Simultaneously displays minimum or maximum and actual thickness value at 20 measurements per second |
| Differential Mode | Displays the difference from the actual thickness measurement in absolute or percentage of a user entered reference value |
| Alarm | Minimum/Maximum depth, vibrates, beeps and display flashes as well as keypad illumination |
| Illuminating Keypad | F1 = Red, F2 = Yellow and F3 = Green for easy go/no-go testing |
| Echo to Echo | Measures the metal thickness only (ignores paint and coatings) |
| Ergonomics | User selectable lefty or rightly display changes via keypad |
| Backlight | Light Emitting Diode, On/Off or Auto On based on valid readings or last key press |
| Shut Off | Auto, user programmable time out (1 to 31 minutes), after no reading/key press or never shut off |
| Protective Pouch | Custom molded pouch with wrist strap and belt clip (Optional, standard on DLW and DL gauges) |
| Transport Case | Hard Plastic with high density molded foam cut out for gauge and most accessories |
| Freeze Mode | Freezes display (ideal for high temperature readings) |
| Hold Mode | Holds display to retain last thickness reading |
| Transducers | A wide variety of dual transducers from 1- to 10 mhz, high temperature duals, delay lines and pencil probes |
| Dimensions | 5 x 3 x 1.25" (127 x 76.2 x 31.75 mm) |
| Weight | 8 oz (0.23 kg) |
