Determines material velocities by measuring a known thickness, entering a known thickness into the instrument, and the material velocity will be displayed. Measures materials like casts, alloys, or plastics. Features easy to read backlit display and can be operated up to 200 hours on a single set of batteries.
Determines material velocities by measuring a known thickness, entering a known thickness into the instrument, and the material velocity will be displayed. Measures materials like casts, alloys, or plastics. Features easy to read backlit display and can be operated up to 200 hours on a single set of batteries.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Ultrasonic Thickness Gauges category for similar products.
Or let's do a search and help you find what you need:

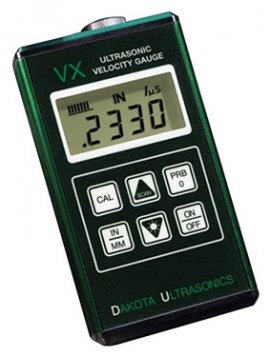

The VX is a hand-held ultrasonic velocity gauge. When measuring materials such as casts, alloys, or plastics, the VX displays the speed of sound (velocity) through the material; thus giving an indication of its consistency. The VX gauge has 2 measuring modes: The Point-to-Point mode, which is simply placing the probe to the material and the gauge will display the velocity at that point. The Scan mode allows the operator to place the probe on the material and then move the probe along the surface; when the probe is lifted from the material, it will then display the fastest velocity the gauge found on the area covered.
Features
Applications
| Operating Temperature | -20 to 120°F (-20 to 50°C) |
| Case Materials | Extruded Aluminum Body Nickel Plated Aluminum End Caps |
| Measuring Range | 0.025 to 19.999" (0.63 to 500 mm) |
| Resolution | 0.001" (0.01 mm) |
| Accuracy | ±0.001" (0.01 mm) Depends on material and conditions |
| Sound Velocity Range | 0.0492 to 0.3930 in/µs (1250 to 10,000 m/s) |
| Power Source | 2 x 1.5V Alkaline Batteries or 1.2V NiCad AA Cells |
| Dimensions | 2.5 x 4.75 x 1.24" |
| Weight | 10 oz (with Batteries) |
Click on a category to view a selection of compatible accessories with the Dakota VX Ultrasonic Velocity Gauge, 0.025 to 19.99".
| Operating Temperature | -20 to 120°F (-20 to 50°C) |
| Case Materials | Extruded Aluminum Body Nickel Plated Aluminum End Caps |
| Measuring Range | 0.025 to 19.999" (0.63 to 500 mm) |
| Resolution | 0.001" (0.01 mm) |
| Accuracy | ±0.001" (0.01 mm) Depends on material and conditions |
| Sound Velocity Range | 0.0492 to 0.3930 in/µs (1250 to 10,000 m/s) |
| Power Source | 2 x 1.5V Alkaline Batteries or 1.2V NiCad AA Cells |
| Dimensions | 2.5 x 4.75 x 1.24" |
| Weight | 10 oz (with Batteries) |
Click on a category to view a selection of compatible accessories with the Dakota VX Ultrasonic Velocity Gauge, 0.025 to 19.99".
