Image is for reference only, refer to product info for complete details.

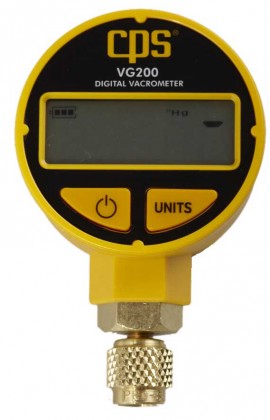

This digital vacuum gauge monitors evacuation procedures from start to finish. A simple 2-button operation gives the flexibility to select or change units: microns, millibar, Torr and inES/HG.
This digital vacuum gauge monitors evacuation procedures from start to finish. A simple 2-button operation gives the flexibility to select or change units: microns, millibar, Torr and inES/HG.
It automatically compensate for varying temperature conditions, with no manual adjustments necessary.
Features
| Sensor Type: | Self-heated thermistor bridge with integral temperature compensation from 32 to 122°F (0 to 50°C) |
| Operating Pressure Range: | Atmospheric pressure to 0 microns Maximum Working pressure: 600 PSIG |
| Burst Pressure: | 3,000psig |
| Operating Range: | Atmospheric to 0 microns |
| Accuracy: | ±10% of Reading |
| Operating Temperature Range: | Compensated (accuracy as stated): 0 to 50°C (32 to 122°F) Non-compensated: Add ±0.5% error for every °C outside compensated range): -22 to 158°F (0 to 50°C) |
| Operating & Storage Humidity: | 0 to 95%, non-condensing |
| Storage Temperature: | -40 to 185°F (-40 to 85°C) |
| Power Source: | One 9 volt alkaline battery (ANSI 1604AC - IEC 6LR61) |
| Battery Life: | 20 hours of continuous use. Instrument shuts itself off after 5 minutes of operation |
| Battery Indicator: | Battery symbol with 3 segment Power Level Bar Graph |
| Mechanical Connection: | Standard 1/4in female SAE refrigerant hose type with core depressor |
| Dimensions: | 2.7 x 1.6 x 5in (68 x 40 x 124mm) (Diameter x Depth x Height) |
| Weight | 5.5oz (153g) excluding the battery |
| Sensor Type: | Self-heated thermistor bridge with integral temperature compensation from 32 to 122°F (0 to 50°C) |
| Operating Pressure Range: | Atmospheric pressure to 0 microns Maximum Working pressure: 600 PSIG |
| Burst Pressure: | 3,000psig |
| Operating Range: | Atmospheric to 0 microns |
| Accuracy: | ±10% of Reading |
| Operating Temperature Range: | Compensated (accuracy as stated): 0 to 50°C (32 to 122°F) Non-compensated: Add ±0.5% error for every °C outside compensated range): -22 to 158°F (0 to 50°C) |
| Operating & Storage Humidity: | 0 to 95%, non-condensing |
| Storage Temperature: | -40 to 185°F (-40 to 85°C) |
| Power Source: | One 9 volt alkaline battery (ANSI 1604AC - IEC 6LR61) |
| Battery Life: | 20 hours of continuous use. Instrument shuts itself off after 5 minutes of operation |
| Battery Indicator: | Battery symbol with 3 segment Power Level Bar Graph |
| Mechanical Connection: | Standard 1/4in female SAE refrigerant hose type with core depressor |
| Dimensions: | 2.7 x 1.6 x 5in (68 x 40 x 124mm) (Diameter x Depth x Height) |
| Weight | 5.5oz (153g) excluding the battery |
