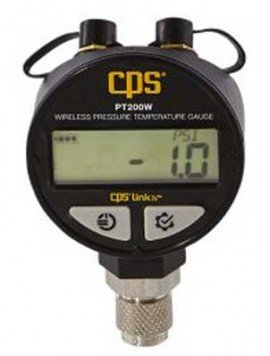

CPS PT200W Wireless Pressure and Temperature Gauge

Model: PT200W

CPS PT200W Wireless Pressure and Temperature Gauge-

Image is for reference only, refer to product info for complete details.


Downloads: datasheet manual

CPS PT200W Wireless Pressure and Temperature Gauge

Model: PT200W

This wireless pressure and temperature gauge is a compact, portable instrument for accurately measuring and calculating HVAC/R data, such as pressure, SuperHeat, SubCool and temperature differential.

This wireless pressure and temperature gauge is a compact, portable instrument for accurately measuring and calculating HVAC/R data, such as pressure, SuperHeat, SubCool and temperature differential.

Sale Price $315.47 USD
Regular Price $364.01 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PT200W Wireless Pressure and Temperature Gauge

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PT200W Wireless Pressure and Temperature Gauge

CPS PT200W Offers

Use the PT200W wireless pressure and temperature gauge as a stand-alone gauge or pair with a mobile device to set up, store or e-mail client and job lists, job site data, invoices and other convenient, time saving features.

Features

  • Large, 5 digit LCD display with low battery indicator
  • Compatible with all refrigerant gases (including ammonia)
  • Includes thermistor sensor (clamp, with 6ft (1.83m) lead), stainless steel T connector, hanger hook, double wall cloth storage case, and quick start guide - all packed in a clear clamshell
  • Designed and manufactured in the USA with US and foreign components
  • Take measurements directly from system access port

CPS Link™ app Features

  • Client Lists – Enter and retain client information
  • Job Checklist – Create and retain job reminders
  • Job Tracker – Create and retain a record of services performed
  • Geolocation – Record where (global coordinates) and when (time stamp) jobs performed
  • Cloud backup of data
  • Monitor readings remotely without refrigerant loss caused by manifolds and long hoses
  • Share/Send Data – Conveniently e-mail data to a client, home office, others
  • Selectable Language – Choose from English or Spanish
  • P/T tables for 105 refrigerants, and ability to add/delete
  • Data Log – Pressure, temperature (tH, tL)

CPS PT200W Specifications

Operating Pressure Range -14.5 to 750 psig
Pressure Reading Accuracy 1% of reading ±0.1 psig (0.01 bar)
Maximum Pressure 750 psig mwp, 3000 psig burst
Operating Temperature Range 23 to 149°F (-5 to 65°C)
Temperature Reading Accuracy ±0.36°F (±0.2°C)
SH, SC & Saturation Temperature Accuracy ±0.5°F (±0.3°C)
tH & tL Thermistor Temperature Range -40 to 302°F (-40 to 150°C)
Clamp Opening: 1-1/8" (28.5 mm)
Cord Length: 6 ft (1.82 m)
Storage Temperature Range -40 to 185°F (-40 to 85°C)
Operating and Storage Humidity 0 to 95%, non condensing
Wireless Range Power high: Up to 250 ft (76 m)
Power normal: Up to 175 ft (53 m)
Power low: Up to 100 ft (30 m)
Power Source 9 V alkaline battery (ANSI 1604 AC - IEC 6LR61)
Battery Life Up to 40 h continuous use
Auto-Off 10 mins
Mechanical Connection Standard 1/4" female SAE refrigerant hose type (stainless steel) with core depressor
Gauge to Wireless Device Connection Patented wireless CPS Link™ technology (US Patent No. 9,043,161)
Click here for complete specifications on the CPS PT200W

What's included with the CPS PT200W

  • Pressure & Temperature Gauge
  • Thermistor Sensor
  • Stainless Steel T Connector
  • Hanger hook
  • Double Wall Cloth Storage Case
  • Quick Start Guide

Ask a question about CPS PT200W Wireless Pressure and Temperature Gauge

Customer Reviews for the CPS PT200W

CPS PT200W Offers

Use the PT200W wireless pressure and temperature gauge as a stand-alone gauge or pair with a mobile device to set up, store or e-mail client and job lists, job site data, invoices and other convenient, time saving features.

Features

  • Large, 5 digit LCD display with low battery indicator
  • Compatible with all refrigerant gases (including ammonia)
  • Includes thermistor sensor (clamp, with 6ft (1.83m) lead), stainless steel T connector, hanger hook, double wall cloth storage case, and quick start guide - all packed in a clear clamshell
  • Designed and manufactured in the USA with US and foreign components
  • Take measurements directly from system access port

CPS Link™ app Features

  • Client Lists – Enter and retain client information
  • Job Checklist – Create and retain job reminders
  • Job Tracker – Create and retain a record of services performed
  • Geolocation – Record where (global coordinates) and when (time stamp) jobs performed
  • Cloud backup of data
  • Monitor readings remotely without refrigerant loss caused by manifolds and long hoses
  • Share/Send Data – Conveniently e-mail data to a client, home office, others
  • Selectable Language – Choose from English or Spanish
  • P/T tables for 105 refrigerants, and ability to add/delete
  • Data Log – Pressure, temperature (tH, tL)

CPS PT200W Specifications

Operating Pressure Range -14.5 to 750 psig
Pressure Reading Accuracy 1% of reading ±0.1 psig (0.01 bar)
Maximum Pressure 750 psig mwp, 3000 psig burst
Operating Temperature Range 23 to 149°F (-5 to 65°C)
Temperature Reading Accuracy ±0.36°F (±0.2°C)
SH, SC & Saturation Temperature Accuracy ±0.5°F (±0.3°C)
tH & tL Thermistor Temperature Range -40 to 302°F (-40 to 150°C)
Clamp Opening: 1-1/8" (28.5 mm)
Cord Length: 6 ft (1.82 m)
Storage Temperature Range -40 to 185°F (-40 to 85°C)
Operating and Storage Humidity 0 to 95%, non condensing
Wireless Range Power high: Up to 250 ft (76 m)
Power normal: Up to 175 ft (53 m)
Power low: Up to 100 ft (30 m)
Power Source 9 V alkaline battery (ANSI 1604 AC - IEC 6LR61)
Battery Life Up to 40 h continuous use
Auto-Off 10 mins
Mechanical Connection Standard 1/4" female SAE refrigerant hose type (stainless steel) with core depressor
Gauge to Wireless Device Connection Patented wireless CPS Link™ technology (US Patent No. 9,043,161)
Click here for complete specifications on the CPS PT200W

What's included with the CPS PT200W

  • Pressure & Temperature Gauge
  • Thermistor Sensor
  • Stainless Steel T Connector
  • Hanger hook
  • Double Wall Cloth Storage Case
  • Quick Start Guide

Ask a question about CPS PT200W Wireless Pressure and Temperature Gauge

Customer Reviews for the CPS PT200W
