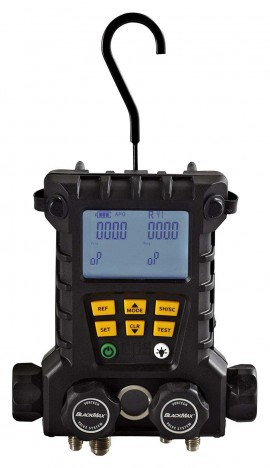

CPS MD100VHE 4-Valve Digital Manifold with 5ft Hose Set

Model: MD100VHE

CPS MD100VHE 4-Valve Digital Manifold with 5ft Hose Set-

Image is for reference only, refer to product info for complete details.

Downloads: datasheet manual

More CPS Products

Ask an Expert

CPS MD100VHE 4-Valve Digital Manifold with 5ft Hose Set

Model: MD100VHE

This 4-valve digital manifold comes with clamp probes.

This 4-valve digital manifold comes with clamp probes.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

CPS MD100WVHE 4-Valve Wireless Digital Manifold with Clamp Probes, Vacuum Gauge-

CPS MD100WVHE 4-Valve Wireless Digital Manifold with Clamp Probes, Vacuum Gauge

Model: MD100WVHE

This 4-valve digital manifold has fast and convenient touch-screen control with a 5ft (150cm) hose set.

Learn More

CPS MD100VHE Offers

Rugged Design

  • Water-resistant, high-strength, glass-filled nylon housing
  • Precision machined anodized aluminum manifold body
  • Proprietary Vortech® valve systems (certified to 10 microns)
  • High-impact polycarbonate LCD window
  • Advanced sight glass design

Simplicity & Versatility

  • One key ON/OFF and function select
  • Supports 105 of the most common refrigerants
  • Compatible with R744 subcritical CO2 refrigerants
  • One-touch access to your 5 favorite refrigerants
  • 25 hours of continuous use with full backlight illumination

Full System Measurement

  • 2 Pressures, 2 temperatures and vacuum (using MDXVG accessory)
  • Vacuum hold and pressure hold test functions

Simultaneously displays

  • HI and LO pressures, superheat and subcooling
  • HI and LO pressures, T1 and T2
  • HI and LO pressures, saturation T1 and saturation T2
  • HI and LO pressures, displays T1, T2 and Delta T

CPS MD100VHE Specifications

High and Low Side Pressure Range -14.5 to 800 psig (-1 to 55 bar)
Pressure Reading Accuracy ±1% of reading or ±0.5psig (±0.05 bar)
Pressure Reading Resolution 0.5 psig (0.05 bar)
High and Low Side Burst Pressure 1,500 psig (103.4 bar)
High and Low Side Temperature Range -58 to 302°F (-50 to 150°C)
Temperature Reading Accuracy ±0.36°F (±0.2°C)
Vacuum Indication Accuracy ±10 microns (requires MDXVG accessory)
SH, SC and Saturation Temperature Accuracy ±0.5°F (±0.3°C)
Operating Temperature -4 to 122°F (-20 to 50°)
Operating RH Range 0 to 100% non-condensing
Automatic Power Off 10 minutes. Can be disabled by user
Dimensions 8.1 x 3.5 x 7" (20.5 x 8.9 x 17.8 cm)
Weight 3.3 lb (1.5 kg)
Battery Life Backlight Full ON: 20 to 25+ hrs. Continuous Duty
Backlight Full OFF: 50 to 60+ hrs. Continuous Duty
Click here for complete specifications on the CPS MD100VHE

What's included with the CPS MD100VHE

  • 4-Valve Digital Manifold
  • 2 x Thermistor Sensor with 6' (1.83 m) Leads (MDXCP)
  • 5' (1.52 m) Black & Chrome Ball Valve Charging Hoses 3Pk (HP5BKEZ)
  • 5' (1.52 m) Heavy Duty Black & Chrome Vacuum Hose
  • Vacuum Gauge Accessory Kit (MDXVG)
  • User Manual
datasheet for the CPS MD100VHE 4-Valve Digital Manifold with 5ft Hose Set manual for the CPS MD100VHE 4-Valve Digital Manifold with 5ft Hose Set
