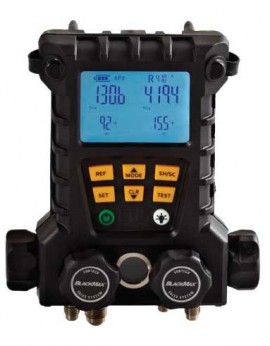

CPS MD100 BlackMax 4-Valve Digital Manifold, 1/4 and 3/8 SAE

Model: MD100

CPS MD100 BlackMax 4-Valve Digital Manifold, 1/4 and 3/8 SAE-

Image is for reference only, refer to product info for complete details.

Downloads: datasheet manual

More CPS Products

Ask an Expert

CPS MD100 BlackMax 4-Valve Digital Manifold, 1/4 and 3/8 SAE

Model: MD100

This 4-valve digital manifold comes with 1/4 and 3/8 SAE fittings and an advanced sight glass design.

This 4-valve digital manifold comes with 1/4 and 3/8 SAE fittings and an advanced sight glass design.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

CPS MD100W BlackMax 4-Valve Wireless Digital Manifold-

CPS MD100W BlackMax 4-Valve Wireless Digital Manifold

Model: MD100W

This 4-valve digital manifold can let you perform select manifold functions from up to 300ft (91.44m) away and provides additional features not available with standard digital models. This can also be used as conventional manifolds or connected wirelessly with most iOS or Android mobile devices using the Manifold Link app.

Learn More

CPS MD100 Offers

This 4-valve digital manifold has precision machined anodized aluminum manifold body.

Rugged Design

  • Water-resistant, high-strength, glass-filled nylon housing
  • Precision machined anodized aluminum manifold body
  • Proprietary Vortech® valve systems (certified to 10 microns)
  • High-impact polycarbonate LCD window
  • Advanced sight glass design

Simplicity & Versatility:

  • One key ON/OFF and function select
  • Supports 105 of the most common refrigerants
  • Compatible with R744 subcritical CO2 refrigerants
  • One-touch access to your 5 favorite refrigerants
  • 25 hours of continuous use with full backlight illumination

Full System Measurement:

  • 2 Pressures, 2 temperatures and vacuum (using MDXVG accessory)
  • Vacuum hold and pressure hold test functions

Simultaneously displays

  • HI and LO pressures, superheat and subcooling
  • HI and LO pressures, T1 and T2
  • HI and LO pressures, saturation T1 and saturation T2
  • HI and LO pressures, displays T1, T2 and Delta T

CPS MD100 Specifications

High and Low Side Pressure Range -14.5 to 800 psig (-1 to 55 bar)
Pressure Reading Accuracy ±1% of reading or ±0.5psig (±0.05 bar)
Pressure Reading Resolution 0.5 psig (0.05 bar)
High and Low Side Burst Pressure 1,500 psig (103.4 bar)
High and Low Side Temperature Range -58 to 302°F (-50 to 150°C)
Temperature Reading Accuracy ±0.36°F (±0.2°C)
Vacuum Indication Accuracy ±10 microns (requires MDXVG accessory)
SH, SC and Saturation Temperature Accuracy ±0.5°F (±0.3°C)
Operating Temperature -4 to 122°F (-20 to 50°)
Operating RH Range 0 to 100% non-condensing
Automatic Power Off 10 minutes. Can be disabled by user
Dimensions 8.1 x 3.5 x 7" (20.5 x 8.9 x 17.8 cm)
Weight 3.3 lb (1.5 kg)
Battery Life Backlight Full ON: 20 to 25+ hrs. Continuous Duty
Backlight Full OFF: 50 to 60+ hrs. Continuous Duty
Click here for complete specifications on the CPS MD100

What's included with the CPS MD100

  • 4-Valve Digital Manifold
  • 2 x Thermistor Sensor with 6' (1.83 m) Leads (MDXCP)
  • User Manual
datasheet for the CPS MD100 BlackMax 4-Valve Digital Manifold, 1/4 and 3/8 SAE manual for the CPS MD100 BlackMax 4-Valve Digital Manifold, 1/4 and 3/8 SAE
