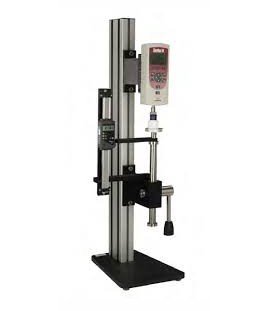

The MT mechanical tester is lever-actuated with 39.4" (100 cm). It has DF force gauge capabilities, bench horizontal wall mounting and a ruler assembly. 6" (15.24 cm) stroke.
The MT mechanical tester is lever-actuated with 39.4" (100 cm). It has DF force gauge capabilities, bench horizontal wall mounting and a ruler assembly. 6" (15.24 cm) stroke.
The MT mechanical tester is lever-actuated with 39.4" (100 cm). It has DF force gauge capabilities, bench horizontal wall mounting and a ruler assembly. 6" (15.24 cm) stroke.
Features
| Load Capacity | 500 lbF, 2.5 kN |
| Column Height | 39.4" (1,000 mm) extended |
| Stroke | 6" (152 mm) |
| Travel Rate | Lever Actuator: 3" (75 mm) per revolution |
| Load Measurement | Chatillon DF gauges |
| Operating Temperature | 40 to 110°F (5 to 45°C) |
| Instrument Weight | 20 lbs (9 kg) |
| Shipping Weight | 25 lbs (12 kg) |
| Load Capacity | 500 lbF, 2.5 kN |
| Column Height | 39.4" (1,000 mm) extended |
| Stroke | 6" (152 mm) |
| Travel Rate | Lever Actuator: 3" (75 mm) per revolution |
| Load Measurement | Chatillon DF gauges |
| Operating Temperature | 40 to 110°F (5 to 45°C) |
| Instrument Weight | 20 lbs (9 kg) |
| Shipping Weight | 25 lbs (12 kg) |
