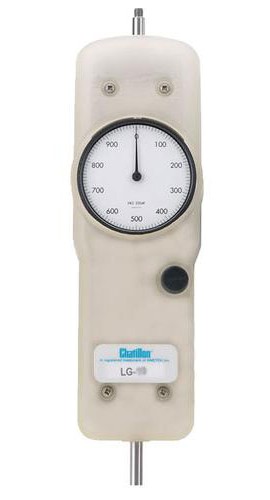

Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb

Model: LG-030

Be the first to review this product

Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb-

Downloads: datasheet manual

More Chatillon Products

Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb

Model: LG-030

Be the first to review this product

This product is ideal for a wide range of force testing applications. Easy to read concentric dial measures clockwise only. Dial rotates 360 degrees for taring.

This product is ideal for a wide range of force testing applications. Easy to read concentric dial measures clockwise only. Dial rotates 360 degrees for taring.

Your Price	$2023.00 USD
Availability	2 to 3 Weeks3 to 4 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your LG-030 Mechanical Force Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIFOR1) for only $240.00 USD

Traceable Calibration Certificate for your LG-030 Mechanical Force Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIFOR1) for only $240.00 USD

Chatillon LG-030 Offers

Excellent, economical solution for tensile or compression testing. These mechanical force gauges fit naturally in the hand for a comfortable and firm grip, even at maximum loads. They feature a 2.25" dial and an accuracy of +0.5% of full scale, along with a peak hold button to capture the peak readings and easily return to zero. The concentric dial measures clockwise only, and rotates 360 degrees for taring. A mechanical overload feature protects the force gauge from damage.

Features

Easy to use, durable construction
Intrinsically safe
Capacities up to 100 lbs
Push or pull operations
Tare ring
Peak capture
NIST calibration with data

Chatillon LG-030 Specifications

Accuracy	±0.5% of Full Scale
Display	2 1/4 (57 mm)
Peak Capture	Switch Selectable
Overload Capacity	110% of Capacity
Gauge Weight	1.5 lbs
Warranty	2 Years

Click here for complete specifications on the Chatillon LG-030

What's included with the Chatillon LG-030

Mechanical Force Gauge
Chisel Point Adapter
Point Adapter
Notch Adapter
Flat Adapter
Hook
Extension Rod
Carrying Case
Handle Assembly

datasheet for the Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb manual for the Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb

Ask a question about Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb

Customer Reviews for the Chatillon LG-030

Description ➕➖

Chatillon LG-030 Offers

Excellent, economical solution for tensile or compression testing. These mechanical force gauges fit naturally in the hand for a comfortable and firm grip, even at maximum loads. They feature a 2.25" dial and an accuracy of +0.5% of full scale, along with a peak hold button to capture the peak readings and easily return to zero. The concentric dial measures clockwise only, and rotates 360 degrees for taring. A mechanical overload feature protects the force gauge from damage.

Features

Easy to use, durable construction
Intrinsically safe
Capacities up to 100 lbs
Push or pull operations
Tare ring
Peak capture
NIST calibration with data

Show More...

Specifications ➕➖

Chatillon LG-030 Specifications

Accuracy	±0.5% of Full Scale
Display	2 1/4 (57 mm)
Peak Capture	Switch Selectable
Overload Capacity	110% of Capacity
Gauge Weight	1.5 lbs
Warranty	2 Years

Click here for complete specifications on the Chatillon LG-030

Included ➕➖

What's included with the Chatillon LG-030

Mechanical Force Gauge
Chisel Point Adapter
Point Adapter
Notch Adapter
Flat Adapter
Hook
Extension Rod
Carrying Case
Handle Assembly

Resources ➕➖

datasheet for the Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb manual for the Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb

Forum ➕➖

Ask a question about Chatillon LG-030 Mechanical Force Gauge, 30lb x 0.15lb

Customer Reviews ➕➖

Customer Reviews for the Chatillon LG-030
