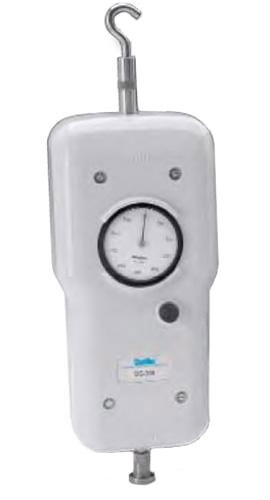

Chatillon DG-250KG Mechanical Force Gauge, 250kg x 1.25kg

Model: DG-250KG

Be the first to review this product

Chatillon DG-250KG Mechanical Force Gauge, 250kg x 1.25kg-

Downloads: datasheet manual

More Chatillon Products

Ask an Expert

Chatillon DG-250KG Mechanical Force Gauge, 250kg x 1.25kg

Model: DG-250KG

Be the first to review this product

This is ideal for a wide range of force testing applications up to 500 pounds. This features an easy to read concentric dial that measures clockwise only.

Your Price	$2446.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your DG-250KG Mechanical Force Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIFOR1) for only $240.00 USD

Traceable Calibration Certificate for your DG-250KG Mechanical Force Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIFOR1) for only $240.00 USD

Chatillon DG-250KG Offers

Features

Easy to use, durable construction
Intrinsically safe
Capacity up to 500 pounds (also newtons and kilograms versions available)
Push or pull operations
Can be used as a hand-held device or equipped with an optional handle set for two-hand operation
Tare ring
Peak capture
Universal mounting plate
NIST calibration with data

Chatillon DG-250KG Specifications

Accuracy	±0.5% of Full Scale
Overload Capacity	110% of Rated Capacity
Maximum Overload	150% of Rate Capacity
Tare Capacity	10% of Rated Capacity
Dial resolution	0.5% of Full Scale
Deflection	10 mm (0.394) at Full Scale
Operation Temperature	40 to 110°F (5 to 45°C)
Instrument Weight	5 lbs
Shipping Weight	10 lbs
Warranty	2 Years

Click here for complete specifications on the Chatillon DG-250KG

What's included with the Chatillon DG-250KG

Mechanical Force Gauge
Chisel Point Adapter
Point Adapter
Notch Adapter
Flat adapter
Hook
Extension Rod
Carrying Case

datasheet for the Chatillon DG-250KG Mechanical Force Gauge, 250kg x 1.25kg manual for the Chatillon DG-250KG Mechanical Force Gauge, 250kg x 1.25kg

Ask a question about Chatillon DG-250KG Mechanical Force Gauge, 250kg x 1.25kg

Customer Reviews for the Chatillon DG-250KG

Description ➕➖

Chatillon DG-250KG Offers

Features

Easy to use, durable construction
Intrinsically safe
Capacity up to 500 pounds (also newtons and kilograms versions available)
Push or pull operations
Can be used as a hand-held device or equipped with an optional handle set for two-hand operation
Tare ring
Peak capture
Universal mounting plate
NIST calibration with data

Specifications ➕➖

Chatillon DG-250KG Specifications

Accuracy	±0.5% of Full Scale
Overload Capacity	110% of Rated Capacity
Maximum Overload	150% of Rate Capacity
Tare Capacity	10% of Rated Capacity
Dial resolution	0.5% of Full Scale
Deflection	10 mm (0.394) at Full Scale
Operation Temperature	40 to 110°F (5 to 45°C)
Instrument Weight	5 lbs
Shipping Weight	10 lbs
Warranty	2 Years
