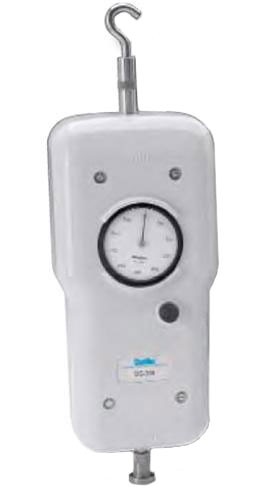

Chatillon DG-1000N Mechanical Force Gauge, 1000N x 5N

Model: DG-1000N

Be the first to review this product

Chatillon DG-1000N Mechanical Force Gauge, 1000N x 5N-

Downloads: datasheet manual

More Chatillon Products

Ask an Expert

Chatillon DG-1000N Mechanical Force Gauge, 1000N x 5N

Model: DG-1000N

Be the first to review this product

This is ideal for a wide range of force testing applications up to 500 pounds. Based on Chatillons popular DPPH series force gauge, the DG-series force gauges feature a larger, 2.25 dial for improved resolution and readability, peak hold button, durable plastic housing, universal mounting plate, ergonomic shape and improved accuracy of +/-0.5% of full scale.

Your Price	$2400.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your DG-1000N Mechanical Force Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIFOR1) for only $240.00 USD

Traceable Calibration Certificate for your DG-1000N Mechanical Force Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIFOR1) for only $240.00 USD

Chatillon DG-1000N Offers

Features

Easy to use, durable construction
Intrinsically safe
Capacity up to 500 pounds (also newtons and kilograms versions available)
Push or pull operations
For tensile or compression testing up to 500 lbf
Tare ring
Peak capture
Hand-held device or equipped with an optional handle set for two-hand operation
Universal mounting plate
NIST calibration with data

Chatillon DG-1000N Specifications

Accuracy	±0.5% of Full Scale
Overload Capacity	110% of Rated Capacity
Maximum Overload	150% of Rate Capacity
Tare Capacity	10% of Rated Capacity
Dial resolution	0.5% of Full Scale
Deflection	10 mm (0.394) at Full Scale
Operation Temperature	40 to 110°F (5 to 45°C)
Instrument Weight	5 lbs
Shipping Weight	10 lbs
Warranty	2 Years

Click here for complete specifications on the Chatillon DG-1000N

What's included with the Chatillon DG-1000N

Mechanical Force Gauge
Chisel Point Adapter
Point Adapter
Notch Adapter
Flat Adapter
Hook
Extension Rod
Carrying Case

datasheet for the Chatillon DG-1000N Mechanical Force Gauge, 1000N x 5N manual for the Chatillon DG-1000N Mechanical Force Gauge, 1000N x 5N

Ask a question about Chatillon DG-1000N Mechanical Force Gauge, 1000N x 5N

Customer Reviews for the Chatillon DG-1000N

Description ➕➖

Chatillon DG-1000N Offers

Features

Easy to use, durable construction
Intrinsically safe
Capacity up to 500 pounds (also newtons and kilograms versions available)
Push or pull operations
For tensile or compression testing up to 500 lbf
Tare ring
Peak capture
Hand-held device or equipped with an optional handle set for two-hand operation
Universal mounting plate
NIST calibration with data

Specifications ➕➖

Chatillon DG-1000N Specifications

Accuracy	±0.5% of Full Scale
Overload Capacity	110% of Rated Capacity
Maximum Overload	150% of Rate Capacity
Tare Capacity	10% of Rated Capacity
Dial resolution	0.5% of Full Scale
Deflection	10 mm (0.394) at Full Scale
Operation Temperature	40 to 110°F (5 to 45°C)
Instrument Weight	5 lbs
Shipping Weight	10 lbs
Warranty	2 Years
