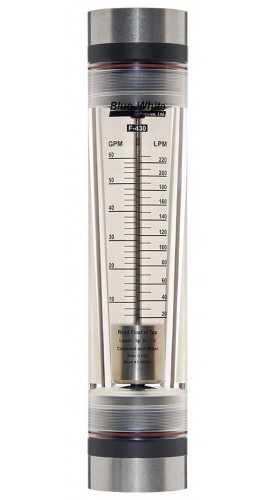

Blue-White F-43040LNK-24 K-Series Flowmeter with 316 SS Guide Rod, 4 to 40GPM

Downloads: datasheet manual

Equipped with a 316 stainless-steel guide rod, this flowmeter has a 4 to 40GPM (15 to 150LPM) flow rate and hastelloy float material.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Model: F-43040LNS-24

Equipped with a 316 stainless-steel guide rod, this flowmeter has a 4 to 40GPM (15 to 150LPM) flow rate and PVC adapter material.

Learn More

This flowmeter features a white back reflector for easy reading.

Features

Tough machined acrylic meter body, highly polished to a clear finish
Direct reading permanent scale
1-1/2in or 2in F/NPT adapters with high grade Viton o-ring seals and aluminum "stress ring" thread supports
316 stainless steel or Hastelloy rod guided floats
Acceptable in direct sunlight applications

Max. Working Pressure	130psi (8.9 bar) @ 70°F (21°C)
Max. Fluid Temperature (C) @ 0 PSI	130°F (54°C) @ 0psi
Full Scale Accuracy	±5%
Calibration Fluid	Water, specific gravity 1.0
Scale Length	5in (12.7cm)
Environment	Acceptable for direct sunlight exposure
Maximum Pressure Drop (PSI)	3
