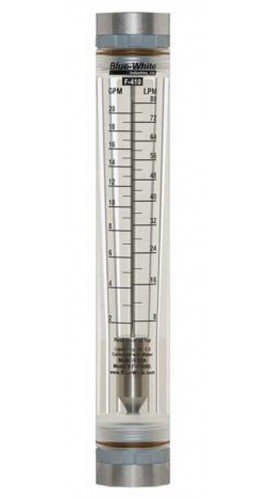

Blue-White F-40750LN-12 F-410 Series Flowmeter

Downloads: datasheet manual

This variable-area flowmeter is part of the F-410 Series.

This flowmeter features a white back reflector for easy reading.

Features

Tough machined acrylic meter body, highly polished to a clear finish
Direct reading permanent scale
F/NPT adapters with high grade Viton o-ring seals and aluminum "stress ring" thread supports
316 stainless steel or Hastelloy rod guided floats
Acceptable in direct sunlight applications

Pipe Size (Inch)	3/4
Flow Range (GPM)	1 to 10
Flow Range (LPM)	4 to 38
Float Material	316 SS
Meter Body	Cast Acrylic Rod
Adapter Material	Polypropylene
Guide Rod Holder	Polypropylene
O-ring Seals	FKM (optional EP)
Guide Rod	316SS
Max. Working Pressure	150psi (10.3 bar) @ 70°F (21°C)
Max. Fluid Temperature	150°F (65°C) @ 0psig
Full Scale Accuracy	±5%
Calibration Fluid	Water, specific gravity 1.0
Scale Length	5in (12.7cm)
Environment	Acceptable for direct sunlight exposure
Maximum Pressure Drop (PSI)	2
Width	1.73in (44mm)
Height	10.98in (279mm)
Length	1.73in (44mm)
