Compact capacitance meter, designed for accurate measurement of capacitive components.
Compact capacitance meter, designed for accurate measurement of capacitive components.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

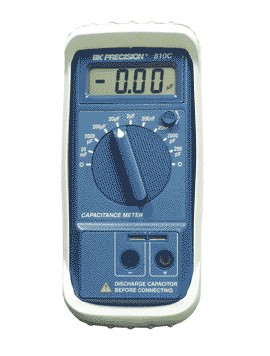

The model 810C Capacitance Meter is compact capacitance meter, designed for accurate measurment of capacitive components.It features direct plug-in test sockets and test lead jacks. A zero adjustment knob us also provided to "zero" test lead capacitance.
Features
| Range | 200pF |
| Excitation Voltage | <3.5 V Max. |
| Zero Adjustment Range | +20 pF typical |
| Protection | Input protected by 0.1 A/250 V fast acting |
| Measurement Rate | 2 per second, nominal |
| Battery Life | 9 V Battery |
| Display | 200 hours typ. (alkaline) |
| Digit Height | 3 1/2 digit LCD |
| Digit Height | 0.56" |
| Temperature | 32 deg - 104 deg F |
| Dimensions | 6.75 x 3.0 x 2.25" |
| Weight | 13.3 oz. |
| Range | 200pF |
| Excitation Voltage | <3.5 V Max. |
| Zero Adjustment Range | +20 pF typical |
| Protection | Input protected by 0.1 A/250 V fast acting |
| Measurement Rate | 2 per second, nominal |
| Battery Life | 9 V Battery |
| Display | 200 hours typ. (alkaline) |
| Digit Height | 3 1/2 digit LCD |
| Digit Height | 0.56" |
| Temperature | 32 deg - 104 deg F |
| Dimensions | 6.75 x 3.0 x 2.25" |
| Weight | 13.3 oz. |
