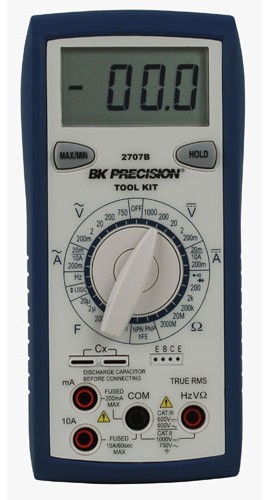

B&K Precision 2707B Tool Kit Digital Multimeter with logic probe

Model: 2707B | UPC: 817050270723

B&K Precision 2707B Tool Kit Digital Multimeter with logic probe

Model: 2707B | UPC: 817050270723

Handheld and versatile, this digital multimeter features manual ranging True RMS technology and combines performance, value, and functionality. With a 2000 count LCD, this multimeter can display resistance values up to 2 GΩ, capacitance to 20 uF, or a transistor's common-emitter gain value up to 1000.

Handheld and versatile, this digital multimeter features manual ranging True RMS technology and combines performance, value, and functionality. With a 2000 count LCD, this multimeter can display resistance values up to 2 GΩ, capacitance to 20 uF, or a transistor's common-emitter gain value up to 1000.

Sale Price $106.40 USD
Regular Price $112.00 USD
Availability 1 Week
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 2707B Tool Kit Digital Multimeter with logic probe

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 2707B Tool Kit Digital Multimeter with logic probe

B&K Precision 2707B Tool Kit Digital Multimeter with Logic Probe

Features

  • The 2000 count LCD can display resistance values up to 2 GΩ, capacitance to 20uF, or a transistors common-emitter gain value up to 1000
  • Large 3½ digit, 2000 count LCD and one-handed operation make for easy and convenient use
  • Comes with the ability to measure True RMS, perform a continuity test, diode test, logic test, and hFE transistor test
  • Measures DC voltage to 1000 V, AC voltage to 750 V
  • Measures resistance to 2000 MΩ and capacitance to 20 uF
  • Comes with magnetic hanger, one set test leads, one spare fuse, 9 V battery and instruction manual

B&K 2707B Specifications

DC Volts
Ranges 200 mV, 2000 mV, 20 V, 200 V 1000 V
Resolution 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V
Accuracy ±(0.8% rdg + 1 dgts)
Input Impedance 10 MΩ
Overload Protection 1000 VDC or 750 VAC rms
AC Volts (50 to 500 Hz)
Ranges 200 mV, 2000 mV, 20 V, 200 V 750 V
Resolution 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V
Accuracy 200 mV and 20 V ranges: ±(1.5% rdg + 8 dgts)
200 V and 750 V ranges: ±(2% rdg + 8 dgts)
<3
Input Impedance 10 MΩ
Overload Protection 1000 VDC or 750 VAC rms
DC Current
Ranges 200 mA, 20 mA, 10 A
Resolution 10 uA, 100 uA, 10 mA
Accuracy 20 to 200 mA ranges: ±(1% rdg + 1 dgts
10 A range: ±(3.5% rdg + 3 dgts)
Input Protection 0.5 A/500 V and 10 A/600 V fast blow ceramic fuses
10 A Input 10 A for 60 seconds maximum followed by a 10 minute cooling period
AC Current (50 to 500 Hz)
Ranges 20 mA, 200 mA, 10 A
Resolution 10 uA, 100 uA, 10 mA
Accuracy 20 to 200 mA ranges: ±(2% rdg + 8 dgts)
10 A range: ±(3.5% rdg + 8 dgts
Input Protection 0.5 A/500 V and 10 A/600 V fast blow ceramic fuses
Resistance
Ranges 200 Ω, 2 kΩ, 200 kΩ, 20 MΩ, 2000 MΩ
Resolution 0.1 Ω, 1.0 Ω, 100 Ω, 10 kΩ, 1 MΩ
Accuracy 200 Ω to 200 kΩ ranges: ±(1% rdg + 4 dgts)
20 MΩ range: ±(2% rdg + 4 dgts)
2000 MΩ range: ±(5% rdg + 10 dgts)
Open Circuit Voltage (Typical) 0.3 VDC (3 VDC on 200 Ω, 2000 MΩ range)
Overload Protection 500 VDC/AC rms
Capacitance
Ranges 2 nF , 20 nF, 200 nF, 2.0 uF, 20 uF
Resolution 1 pF, 10 pF, 100 pF, 1 nF, 10 nF
Accuracy ±(4% rdg + 10 dgts)
Overload Protection Discharge capacitor before connecting
Frequency
Ranges 2 kHz, 20 kHz, 200 kHz, 2 MHz, 20 MHz
Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz
Accuracy ±(0.1 % rdg + 3 dgts)
Sensitivity 2 V rms minimum
Minimum Pulse Width >25 ns
Duty Cycle Limits >30% and >70%
Overload Protection 500 VDC/AC rms
Diode Test
Test Current 1 mA (typical)
Resolution 10 mV
Accuracy ±(1.5% rdg + 3 dgts)
Open Circuit Voltage 3 VDC (typical)
Overload Protection 500 VDC/AC rms
Continuity
Audible Indication Less than 100 Ω
Response Time 100 ms
Overload Protection 500 VDC/AC rms
Temperature
Ranges -30 to 1400°F (-35 to 750°C)
Resolution 0.1°F (0.1°C)
Accuracy 0 to 400°C ±(1% rdg + 1°C)
-35 to 0°C, 400 to 750°C ±(3% rdg + 3°C)
-4 to 750°F ±(1% rdg + 2°F)
-30 to -4°F, 750 to 1400°F ±(3% rdg + 6°F)
Sensor Type Type-K thermocouple
Overload Protection 60 VDC or 30 VAC rms
General Specifications
Display 3½ digit, 2000 count LCD
Measurement Rate 2.5 times per second
Auto Power Off Approximately 25 minutes
Temperature Operating: 32 to 122°F (0 to 50°C) at < 70% relative humidity
Storage: -4 to 140°F (-20 to 60°C) at 0 to 80% relative humidity
Coefficient: 0.1 x (specified accuracy) per °F/C. (0 to 64.4°F [0 to 18°C], 82.4 to 122°F [28 to 50°C])
Power Single standard 9 V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life 150 hours typical
Dimensions 6.49 x 3.07 x 1.67" (165 x 78 x 42.5 mm)
Weight 10 oz (285 g)
Click here for complete specifications on the B&K 2707B

What's included with the B&K 2707B

  • Digital Multimeter
  • Test Leads
  • Spare Fuse
  • 9 V Battery
  • User's Manual
