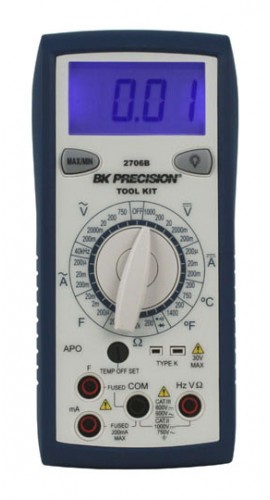

B&K Precision 2706B Tool Kit Digital Multimeter with temperature

Model: 2706B | UPC: 817050270624

Be the first to review this product

B&K Precision 2706B Tool Kit Digital Multimeter with temperature-

Downloads: datasheet manual

More B&K Products

Ask an Expert

B&K Precision 2706B Tool Kit Digital Multimeter with temperature

Model: 2706B | UPC: 817050270624

Be the first to review this product

Handheld and versatile, this multimeter features a 2000 count LCD with a bright blue backlight that allows the meter to be used in dimly lit environments. Also featured are an auto-ranging function, a magnetic hanger, and an auto power-off feature, avoiding accidental battery over-consumption.

Sale Price	$103.55 USD
Regular Price	$109.00 USD
Availability	13 to 14 Weeks13 to 14 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 2706B Tool Kit Digital Multimeter with temperature

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

Traceable Calibration Certificate for your 2706B Tool Kit Digital Multimeter with temperature

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

B&K Precision 2706B TOOL KIT DMM 0.5% w/ TEMP

Features

2000 count
0.5% DCV accuracy
DC voltage to 1000 V
AC voltage to 750 V
AC/DC current to 10 A
Resistance to 20 MΩ
Capacitance to 20 uF
Frequency counter
Transistor test
Temperature
Continuity
Diode test

B&K 2706B Specifications

DC Volts
Ranges	200 mV, 2000 mV, 20 V, 200 V 1000 V
Resolution	0.1 mV, 1 mV, 10 mV, 100 mV, 1 V
Accuracy	±(0.5% rdg + 1 dgts)
Input Impedance	10 MΩ
Overload Protection	1000 VDC or 750 VAC rms
AC Volts (50 to 500 Hz)
Ranges	200 mV, 2000 mV, 20 V, 200 V 750 V
Resolution	0.1 mV, 1 mV, 10 mV, 100 mV, 1 V
Accuracy	200 mV and 20 V ranges: ±(1.2% rdg + 5 dgts) 200 V and 750 V ranges: ±(2% rdg + 5 dgts)
Input Impedance	10 MΩ
Overload Protection	1000 VDC or 750 VAC rms
DC Current
Ranges	200 uA, 20 mA, 200 mA
Resolution	0.1 uA, 10 uA, 100 uA
Accuracy	±(1% rdg + 1 dgts)
Input Protection	0.25 A/500 V fast blow ceramic fuse
AC Current (50 to 500 Hz)
Ranges	200 uA, 20 mA, 200 mA
Resolution	0.1 uA, 10 uA, 100 uA
Accuracy	±(1.5% rdg + 5 dgts)
Input Protection	0.25 A/500 V fast blow ceramic fuse
Resistance
Ranges	200 Ω, 2 kΩ, 200 kΩ, 20 MΩ
Resolution	0.1 Ω, 1.0 Ω, 100 Ω, 10 kΩ
Accuracy	200 Ω to 200 kΩ ranges: ±(1% rdg + 4 dgts) 20 MΩ range: ±(2% rdg + 4 dgts)
Open Circuit Voltage (Typical)	0.3 VDC (3 VDC on 200 Ω)
Overload Protection	500 VDC/AC rms
Capacitance
Ranges	200 uF, 2 mF, 20 mF
Resolution	0.1 uF, 1 uF, 10 uF
Accuracy	±(4% rdg + 10 dgts)
Overload Protection	0.25 A/500 V fast blow ceramic fuse
Frequency
Ranges	10 Hz to 40 kHz
Resolution	1 Hz
Accuracy	±(0.1% rdg + 3 dgts)
Sensitivity	3.5 V rms minimum
Overload Protection	500 VDC/AC rms
Diode Test
Test Current	1 mA (typical)
Resolution	10 mV
Accuracy	±(1.5% rdg + 3 dgts)
Open Circuit Voltage	3 VDC (typical)
Overload Protection	500 VDC/AC rms
Continuity
Audible Indication	Less than 100 Ω
Response Time	100 ms
Overload Protection	500 VDC/AC rms
Temperature
Ranges	-30 to 1400°F (-35 to 750°C)
Resolution	0.1°F (0.1°C)
Accuracy	0 to 400°C ±(1% rdg + 1°C) -35 to 0°C, 400 to 750°C ±(3% rdg + 3°C) -4 to 750°F ±(1% rdg + 2°F) -30 to -4°F, 750 to 1400°F ±(3% rdg + 6°F)
Sensor Type	Type-K thermocouple
Overload Protection	60 VDC or 30 VAC rms
General Specifications
Display	3^½ digit, 2000 count LCD
Measurement Rate	2.5 times per second
Auto Power Off	Approximately 25 minutes
Temperature	Operating: 32 to 122°F (0 to 50°C) at < 70% relative humidity Storage: -4 to 140°F (-20 to 60°C) at 0 to 80% relative humidity Coefficient: 0.1 x (specified accuracy) per °F/C. (0 to 64.4°F [0 to 18°C], 82.4 to 122°F [28 to 50°C])
Power	Single standard 9 V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life	150 hours typical
Dimensions	6.49 x 3.07 x 1.67" (165 x 78 x 42.5 mm)
Weight	10 oz (285 g)

Click here for complete specifications on the B&K 2706B

What's included with the B&K 2706B

Multimeter
Test Leads
9 V Batery
User's Manual

datasheet for the B&K Precision 2706B Tool Kit Digital Multimeter with temperature manual for the B&K Precision 2706B Tool Kit Digital Multimeter with temperature
