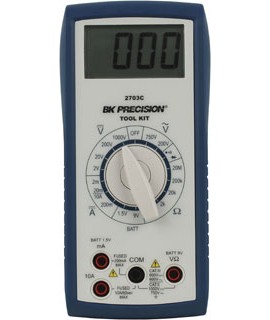

B&K Precision 2703C Manual Ranging Tool Kit DMM

Model: 2703C | UPC: 817050270334

Be the first to review this product

B&amp;K Precision 2703C Manual Ranging Tool Kit DMM-

Downloads: datasheet manual

More B&K Products

Ask an Expert

B&K Precision 2703C Manual Ranging Tool Kit DMM

Model: 2703C | UPC: 817050270334

Be the first to review this product

The high performance meter with a 3.75 digit LCD display measures voltage and current, capacitance, frequency and temperature, and features test and logic indicator capabilities.

Sale Price	$60.80 USD
Regular Price	$64.00 USD
Availability	8 to 9 Weeks8 to 9 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 2703C Manual Ranging Tool Kit DMM

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

Traceable Calibration Certificate for your 2703C Manual Ranging Tool Kit DMM

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

B&K 2703C Offers

Features

Magnetic hanger
One-handed operation
Measures up to 10 A (DC only)
DC voltage to 1000 V
AC voltage to 750 V
Resistance to 20 MΩ
Continuity test
Diode test

B&K 2703C Specifications

Display	3 1/2 digit, 2000 count LCD
Polarity	Automatic, positive implied, negative polarity indication
Overrange	OL or -OL is displayed
Low Battery Indication	Battery symbol will display when battery voltage drops belowoperating levels
Measurement Rate	2.5 times per second
Operating Environment	0ºC to 50ºC at <70 % relative humidity
Storage Environment	-20ºC to 60ºC at 0 to 80 % relative humidity
Accuracies	Stated accuracy at 23ºC +5ºC at <75 % relative humidity
Temperature Coefficient	0.1 x (spec. accuracy) per ºC. (ºC to 18ºC, 28ºC to 50ºC)
Power	Single 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life	200 hours typical
Dimensions	165 mm (H) x 78 mm (W) x 42.5 mm (D)
Weight	Approximately 10 oz. (285 g) with battery and hanger

Click here for complete specifications on the B&K 2703C

What's included with the B&K 2703C

BK Precision 2703C Manual Ranging Tool Kit DMM
Test Leads
Spare Fuse
9V Battery (installed)
Manual

datasheet for the B&K Precision 2703C Manual Ranging Tool Kit DMM manual for the B&K Precision 2703C Manual Ranging Tool Kit DMM

Ask a question about B&K Precision 2703C Manual Ranging Tool Kit DMM

Customer Reviews for the B&K 2703C

Description ➕➖

B&K 2703C Offers

Features

Magnetic hanger
One-handed operation
Measures up to 10 A (DC only)
DC voltage to 1000 V
AC voltage to 750 V
Resistance to 20 MΩ
Continuity test
Diode test

Specifications ➕➖

B&K 2703C Specifications

Display	3 1/2 digit, 2000 count LCD
Polarity	Automatic, positive implied, negative polarity indication
Overrange	OL or -OL is displayed
Low Battery Indication	Battery symbol will display when battery voltage drops belowoperating levels
Measurement Rate	2.5 times per second
Operating Environment	0ºC to 50ºC at <70 % relative humidity
Storage Environment	-20ºC to 60ºC at 0 to 80 % relative humidity
Accuracies	Stated accuracy at 23ºC +5ºC at <75 % relative humidity
Temperature Coefficient	0.1 x (spec. accuracy) per ºC. (ºC to 18ºC, 28ºC to 50ºC)
Power	Single 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life	200 hours typical
Dimensions	165 mm (H) x 78 mm (W) x 42.5 mm (D)
Weight	Approximately 10 oz. (285 g) with battery and hanger
