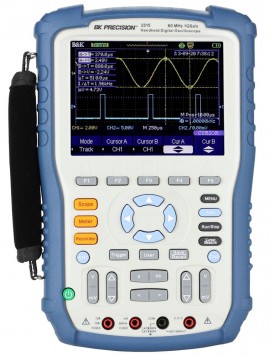

The 2515 handheld digital storage oscilloscope provides floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package.
The 2515 handheld digital storage oscilloscope provides floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Oscilloscopes category for similar products.
Or let's do a search and help you find what you need:
The 2510 Series handheld digital storage oscilloscopes provide floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 60 MHz and 100 MHz bandwidth scopes offer 1 GSa/s sample rates, 2 Mpts waveform memory, 32 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. The 2510 Series allows engineers and technicians to make accurate and safe measurements when the signal reference is floating.
Features
Applications
| Bandwidth | 60MHz |
| Channels | 2 fully isolated |
| Real Time Sampling Rate | 1 GSa/s (half-channel interleaved) (1), 500 MSa/s (per channel) |
| Memory Depth | 40 kpts (half-channel interleaved) (1)(2), 20 kpts (per channel) |
| Vertical Resolution | 8 bits |
| DC Gain Accuracy | 5 mV/div-100 V/div: ≤ ± 4 % |
| Bandwidth Limit | 20 MHz (-3 dB) |
| Timebase Accuracy | ± 50 ppm measured over 1 ms interval |
| Input Coupling | AC, DC, GND |
| Probe Attenuation Selectable Factors | 1X, 5X, 10X, 50X, 100X, 500X, 1000Xg |
| Bandwidth | 60MHz |
| Channels | 2 fully isolated |
| Real Time Sampling Rate | 1 GSa/s (half-channel interleaved) (1), 500 MSa/s (per channel) |
| Memory Depth | 40 kpts (half-channel interleaved) (1)(2), 20 kpts (per channel) |
| Vertical Resolution | 8 bits |
| DC Gain Accuracy | 5 mV/div-100 V/div: ≤ ± 4 % |
| Bandwidth Limit | 20 MHz (-3 dB) |
| Timebase Accuracy | ± 50 ppm measured over 1 ms interval |
| Input Coupling | AC, DC, GND |
| Probe Attenuation Selectable Factors | 1X, 5X, 10X, 50X, 100X, 500X, 1000Xg |
