The 730-0817 Flow Detect 2000 is a flow sensor to detect dry solids flow in any processing industry. Improve batch control by ensuring flow has completely stopped before introducing a new material into a process.
The 730-0817 Flow Detect 2000 is a flow sensor to detect dry solids flow in any processing industry. Improve batch control by ensuring flow has completely stopped before introducing a new material into a process.

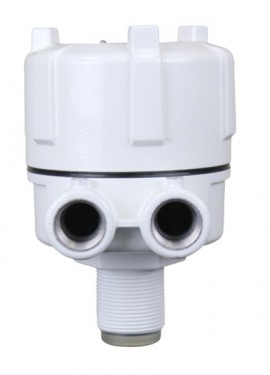

The model FD-2000 solids flow detector is an industrial instrument that senses flow or no-flow conditions of solids and powders in pneumatic pipelines, gravity chutes and feeders. It uses microwave Doppler technology to provide highly sensitive motion detection. The sensor is completely non-intrusive, avoiding contact with the flow stream and associated wear problems.
Features
Applications
Flow or no flow detection to prevent cross contamination of ingredients
As a preventive control for FSMA, USDA, or FDA compliance
Monitoring flow of grains, granules, pellets, meals, and powdered materials
Installed in distributors, gravity chutes, feeders, pipelines, conveyor belts, or bucket elevators
Batch control for processors of food, livestock feed, grain, cement, aggregate, power, and plastic
| Measurement Type | Material Management |
| Medium | Solids |
| Voltage | 24 VDC |
| Outputs | 4-20 mA |
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Storage Temperature | -40°F to +176°F (-40°-to +80 °C) |
| Process Temperature | Up to +176°F (80°C) |
| Approvals | CSA Class II, Groups E, F & G |
| Enclosure Type | IP 64 |
| Enclosure Material | Die cast aluminum |
| Mounting | 1.25" NPS |
| Conduit Entry | 0.75" NPT |
| Measurement Type | Material Management |
| Medium | Solids |
| Voltage | 24 VDC |
| Outputs | 4-20 mA |
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Storage Temperature | -40°F to +176°F (-40°-to +80 °C) |
| Process Temperature | Up to +176°F (80°C) |
| Approvals | CSA Class II, Groups E, F & G |
| Enclosure Type | IP 64 |
| Enclosure Material | Die cast aluminum |
| Mounting | 1.25" NPS |
| Conduit Entry | 0.75" NPT |
