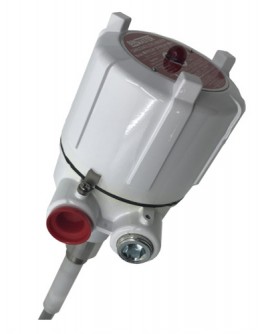

Durable construction that ensures long service life, this 24-inch OEM capacitance probe offers a selectable 115/230 VAC with LED status light and dual time delay. Additional features include a triple-thread screw-off cover and selectable failsafe protection.
Durable construction that ensures long service life, this 24-inch OEM capacitance probe offers a selectable 115/230 VAC with LED status light and dual time delay. Additional features include a triple-thread screw-off cover and selectable failsafe protection.
Features
Applications
| Means of Measurement | Capacitance Measurement Type: Point Level |
| Medium | Solids |
| Voltage | 115 / 230 V AC Selectable |
| Outputs | Relay DPDT 10 Amp - 250 V AC maximum |
| Temperature | Ambient: -40 to 158°F (-40 to 70°C) Process: Up to 145°F (62°C) |
| Approvals | CSA Class II, Groups E, F & G |
| Enclosure Type | NEMA 4X, NEMA 5, NEMA 9, NEMA 12 |
| Enclosure Material | Die cast aluminum |
| Mounting | 1.25" NPT |
| Conduit Entry | 0.75" NPT |
| Means of Measurement | Capacitance Measurement Type: Point Level |
| Medium | Solids |
| Voltage | 115 / 230 V AC Selectable |
| Outputs | Relay DPDT 10 Amp - 250 V AC maximum |
| Temperature | Ambient: -40 to 158°F (-40 to 70°C) Process: Up to 145°F (62°C) |
| Approvals | CSA Class II, Groups E, F & G |
| Enclosure Type | NEMA 4X, NEMA 5, NEMA 9, NEMA 12 |
| Enclosure Material | Die cast aluminum |
| Mounting | 1.25" NPT |
| Conduit Entry | 0.75" NPT |
