Built with a design using dust-penetrating technology, this scanner measures multiple points for unsurpassed bin volume accuracy. Additionally, it provides continuous, non-contact inventory volume measurement for irregular material topography with a 365°F extended temperature and 20-36 VDC, 4-20 mA output.
Built with a design using dust-penetrating technology, this scanner measures multiple points for unsurpassed bin volume accuracy. Additionally, it provides continuous, non-contact inventory volume measurement for irregular material topography with a 365°F extended temperature and 20-36 VDC, 4-20 mA output.
Features
Applications
| Preferred Applications | Powders and solids |
| Measuring Range | 200' (61 meters) |
| Process Temperatures | -40 to 185°F (-40 to 85°C) Standard |
| Process Pressure | -2.9 to 14.5 psi (-0.2 to 3 bar) |
| Signal Output | 4-wire 4 - 20 mA / HART / RS-485 / Modbus |
| Emitting Frequency | 3 to 10 KHz |
| Supply Voltage | 20 to 32 VDC |
| Power Consumption | Maximum 1.5 W @ 24 VDC |
| Hazardous Locations | CFM Intrinsically Safe Class I, II, Division I, Groups C, D, E, F, G (US & Canada) |

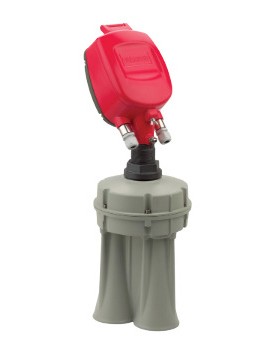

Click on a category to view a selection of compatible accessories with the BinMaster 3DLS-S-HT High Temperatures 3DLevelScanner, 365"F.
| Preferred Applications | Powders and solids |
| Measuring Range | 200' (61 meters) |
| Process Temperatures | -40 to 185°F (-40 to 85°C) Standard |
| Process Pressure | -2.9 to 14.5 psi (-0.2 to 3 bar) |
| Signal Output | 4-wire 4 - 20 mA / HART / RS-485 / Modbus |
| Emitting Frequency | 3 to 10 KHz |
| Supply Voltage | 20 to 32 VDC |
| Power Consumption | Maximum 1.5 W @ 24 VDC |
| Hazardous Locations | CFM Intrinsically Safe Class I, II, Division I, Groups C, D, E, F, G (US & Canada) |
Click on a category to view a selection of compatible accessories with the BinMaster 3DLS-S-HT High Temperatures 3DLevelScanner, 365"F.
