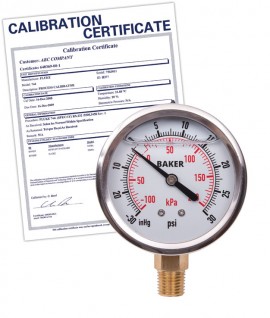

Baker AVNC Series Liquid Filled Pressure Gauge, 30"Hg-0 to 30 psi, 2.5" dial, ¼" NPT bottom, SS housing, includes Traceable Calibration Certificate

Model: AVNC-30-NIST | UPC: 800837025913

Baker AVNC Series Liquid Filled Pressure Gauge, 30"Hg-0 to 30 psi, 2.5" dial, ¼" NPT bottom, SS housing,-

Image is for reference only, refer to product info for complete details.


Downloads: datasheet

More Baker Products

Ask an Expert

Baker AVNC Series Liquid Filled Pressure Gauge, 30"Hg-0 to 30 psi, 2.5" dial, ¼" NPT bottom, SS housing, includes Traceable Calibration Certificate

Model: AVNC-30-NIST | UPC: 800837025913

This pressure gauge has a stamped aluminum 2.5" diameter dial and polished stainless steel case. Its glycerine fill provides a dampening effect which minimizes pulsations. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

This pressure gauge has a stamped aluminum 2.5" diameter dial and polished stainless steel case. Its glycerine fill provides a dampening effect which minimizes pulsations. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Sale Price $110.50 USD
Regular Price $130.00 USD
Availability 5 to 6 Weeks
Quantity

Baker AVNC-30-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • Dual English/metric scales (psi/kPa)
  • Polished stainless steel case
  • Glass lens, pressed bezel
  • Bronze tube and brass socket with brass movement
  • Glycerine fill provides a dampening effect which minimizes pulsations; continuously lubricates gauge movement; and makes this gauge ideally suited for adverse environments
Applications

Ideal for the following applications: Process Monitoring, Production Line Testing, Laboratories, Adverse Environments

Baker AVNC-30-NIST Specifications

Dial Diameter 2½"
Pressure Range 30"Hg-0-30 psi
Accuracy ±1.6% accuracy
Connection 1/4" NPT Bottom Mount
Dial Type Analogue
Figure Intervals 5 psi
Minor Divisions 0.5 psi
Click here for complete specifications on the Baker AVNC-30-NIST

What's included with the Baker AVNC-30-NIST

  • AVNC-30 Pressure Gauge
  • Traceable Calibration Certificate with full Data and Uncertainties

Baker AVNC Series Pressure Gauges


Work with the Baker AVNC series to gauge pressure levels with high accuracy! This series features a compact 2.5" (6.35 cm) diameter dial and a 1/4" male NPT bottom connection. It has a bronze tube and brass socket with brass movement, a glass lens, a pressed bezel, and a polished stainless steel case. In addition, it offers dual scales measuring psi and kPa, and ±1.6% accuracy. Work with this pressure gauge in adverse environments with confidence knowing that the interior is glycerin-filled, which provides a dampening effect that minimizes pulsations and continuously lubricates gauge movement.

Ask a question about Baker AVNC Series Liquid Filled Pressure Gauge, 30"Hg-0 to 30 psi, 2.5" dial, ¼" NPT bottom, SS housing,

Customer Reviews for the Baker AVNC-30-NIST

Baker AVNC-30-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • Dual English/metric scales (psi/kPa)
  • Polished stainless steel case
  • Glass lens, pressed bezel
  • Bronze tube and brass socket with brass movement
  • Glycerine fill provides a dampening effect which minimizes pulsations; continuously lubricates gauge movement; and makes this gauge ideally suited for adverse environments
Applications

Ideal for the following applications: Process Monitoring, Production Line Testing, Laboratories, Adverse Environments

Baker AVNC-30-NIST Specifications

Dial Diameter 2½"
Pressure Range 30"Hg-0-30 psi
Accuracy ±1.6% accuracy
Connection 1/4" NPT Bottom Mount
Dial Type Analogue
Figure Intervals 5 psi
Minor Divisions 0.5 psi
Click here for complete specifications on the Baker AVNC-30-NIST

What's included with the Baker AVNC-30-NIST

  • AVNC-30 Pressure Gauge
  • Traceable Calibration Certificate with full Data and Uncertainties

Baker AVNC Series Pressure Gauges


Work with the Baker AVNC series to gauge pressure levels with high accuracy! This series features a compact 2.5" (6.35 cm) diameter dial and a 1/4" male NPT bottom connection. It has a bronze tube and brass socket with brass movement, a glass lens, a pressed bezel, and a polished stainless steel case. In addition, it offers dual scales measuring psi and kPa, and ±1.6% accuracy. Work with this pressure gauge in adverse environments with confidence knowing that the interior is glycerin-filled, which provides a dampening effect that minimizes pulsations and continuously lubricates gauge movement.
