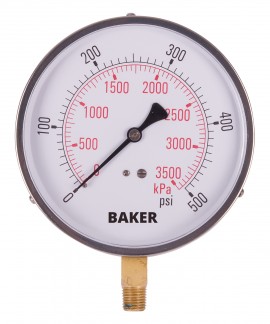

Baker 421AVND Series Pressure Gauge, 0 to 0-500 psi/0-3500 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Model: 421AVND-500 | UPC: 800837025210

Be the first to review this product

$Baker 421AVND Series Pressure Gauge, 0 to 0-500 psi/0-3500 kPa, 4.5&quot; dial, &frac14;&quot; NPT bottom, SS housing-$

Image is for reference only, refer to product info for complete details.

Downloads: datasheet

More Baker Products

Baker 421AVND Series Pressure Gauge, 0 to 0-500 psi/0-3500 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Model: 421AVND-500 | UPC: 800837025210

Be the first to review this product

This pressure gauge has a 4.5" diameter dial and is corrosive resistant with its stainless steel case and ring. It measures 0-500 psi/0-3500 kPa.

This pressure gauge has a 4.5" diameter dial and is corrosive resistant with its stainless steel case and ring. It measures 0-500 psi/0-3500 kPa.

Sale Price	$33.15 USD
Regular Price	$39.00 USD
Availability	5 Days33 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your 421AVND-500 Series Pressure Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG1) for only $110.00 USD

Traceable Calibration Certificate for your 421AVND-500 Series Pressure Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG1) for only $110.00 USD

Baker 421AVND-500 Offers

Features

Dual English/metric scales (psi/kPa)
Corrosion resistant stainless steel case and ring, plastic lens
Soft soldered phosphor bronze tube with brass socket
Phosphor bronze movement is recommended for general use
White background with bold black and red numerals and graduations, 270° arc and balanced adjustable black pointer
Suitable for steam, water, air, oil, gas or any medium not corrosive to copper alloys

Applications

Leak Detection
Process Monitoring
Production Line Testing
Laboratories
Steam
Water
Air
Oil
Gas

Baker 421AVND-500 Specifications

Dial Diameter	4½"
Pressure Gauge	0-500 psi/0-3500 kPa
Accuracy	±1% accuracy
Connection	1/4" NPT Bottom Mount
Dial Type	Analogue
Figure Intervals	50 psi
Minor Divisions	5 psi

Click here for complete specifications on the Baker 421AVND-500

What's included with the Baker 421AVND-500

Baker 421AVND Series Pressure Gauge, 0 to 0-500 psi/0-3500 kPa, 4.5" dial, ¼" NPT bottom, SS housing

datasheet for the Baker 421AVND Series Pressure Gauge, 0 to 0-500 psi/0-3500 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Ask a question about Baker 421AVND Series Pressure Gauge, 0 to 0-500 psi/0-3500 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Customer Reviews for the Baker 421AVND-500

Description ➕➖

Baker 421AVND-500 Offers

Features

Dual English/metric scales (psi/kPa)
Corrosion resistant stainless steel case and ring, plastic lens
Soft soldered phosphor bronze tube with brass socket
Phosphor bronze movement is recommended for general use
White background with bold black and red numerals and graduations, 270° arc and balanced adjustable black pointer
Suitable for steam, water, air, oil, gas or any medium not corrosive to copper alloys

Applications

Leak Detection
Process Monitoring
Production Line Testing
Laboratories
Steam
Water
Air
Oil
Gas

Show More...

Specifications ➕➖

Baker 421AVND-500 Specifications

Dial Diameter	4½"
Pressure Gauge	0-500 psi/0-3500 kPa
Accuracy	±1% accuracy
Connection	1/4" NPT Bottom Mount
Dial Type	Analogue
Figure Intervals	50 psi
Minor Divisions	5 psi

Click here for complete specifications on the Baker 421AVND-500

Included ➕➖

What's included with the Baker 421AVND-500

Baker 421AVND Series Pressure Gauge, 0 to 0-500 psi/0-3500 kPa, 4.5" dial, ¼" NPT bottom, SS housing
