Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi

Model: PPSN7HB25XC8 30IMV/15# | Order No: PPSN7HB25XC830IMV/15#

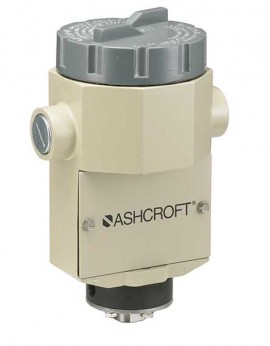

Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi-

Downloads: datasheet manual

More Ashcroft Products

Ask an Expert

Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi

Model: PPSN7HB25XC8 30IMV/15# | Order No: PPSN7HB25XC830IMV/15#

Ideal for use with blowers, compressors, boilers, burners, turbines and reverse osmosis systems, this multifunction pressure switch features an explosion-proof NEMA 7 enclosure. It comes with a single set point, fixed deadband and pressure range of -30 inHg.

Ideal for use with blowers, compressors, boilers, burners, turbines and reverse osmosis systems, this multifunction pressure switch features an explosion-proof NEMA 7 enclosure. It comes with a single set point, fixed deadband and pressure range of -30 inHg.

Sale Price $649.77 USD
Regular Price $726.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure

Ashcroft PPSN7HB25XC8 30IMV/15# Offers

The PP series pressure switch was designed for use with harsh applications where uncompromising protection is required. The features of this switch along with its proven technology provide a stable, long-lasting product; ideal for satisfying pressure control, shutdown or alarm operations.

Features

  • Explosion proof and watertight enclosure
  • Easy-to-read scale for approximate setpoint indication (±5% accuracy)
  • Stainless steel internal parts
  • Easy setpoint adjustment(s) capability
  • Diaphragm-sealed piston actuator for long life is standard for most ranges

Applications

  • Refineries
  • Chemical and Petrochemical Plants
  • Water and Sewage Treatment Facilities
  • Steel Mills

Ashcroft PPSN7HB25XC8 30IMV/15# Specifications

Setpoint Factory set or field adjustable
Setpoint Repeatability ±1% of full range (Additional setpoint shift of ±1% of range per 50°F from initial setpoint set at 70°F typical)
Enclosure RatingNEMA 4X, IP66
Enclosure MaterialEpoxy coated aluminum
Diaphragm MaterialBuna N
Pressure Connection1/4 NPT Female
Electrical OutputSPDT
Electrical Termination3/4 NPT Female
Ambient Temperature Range-20 to 150°F (-28 to 65°C)
Process Temperature0 to 150°F (-17.8 to 65.6°C)
Pressure Range-30" (76.2cm) Hg Vacuum/15psi
Click here for complete specifications on the Ashcroft PPSN7HB25XC8 30IMV/15#

What's included with the Ashcroft PPSN7HB25XC8 30IMV/15#

  • Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi
datasheet for the Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi manual for the Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi

Ask a question about Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi

Customer Reviews for the Ashcroft PPSN7HB25XC8 30IMV/15#

Ashcroft PPSN7HB25XC8 30IMV/15# Offers

The PP series pressure switch was designed for use with harsh applications where uncompromising protection is required. The features of this switch along with its proven technology provide a stable, long-lasting product; ideal for satisfying pressure control, shutdown or alarm operations.

Features

  • Explosion proof and watertight enclosure
  • Easy-to-read scale for approximate setpoint indication (±5% accuracy)
  • Stainless steel internal parts
  • Easy setpoint adjustment(s) capability
  • Diaphragm-sealed piston actuator for long life is standard for most ranges

Applications

  • Refineries
  • Chemical and Petrochemical Plants
  • Water and Sewage Treatment Facilities
  • Steel Mills
Show More...

Ashcroft PPSN7HB25XC8 30IMV/15# Specifications

Setpoint Factory set or field adjustable
Setpoint Repeatability ±1% of full range (Additional setpoint shift of ±1% of range per 50°F from initial setpoint set at 70°F typical)
Enclosure RatingNEMA 4X, IP66
Enclosure MaterialEpoxy coated aluminum
Diaphragm MaterialBuna N
Pressure Connection1/4 NPT Female
Electrical OutputSPDT
Electrical Termination3/4 NPT Female
Ambient Temperature Range-20 to 150°F (-28 to 65°C)
Process Temperature0 to 150°F (-17.8 to 65.6°C)
Pressure Range-30" (76.2cm) Hg Vacuum/15psi
Click here for complete specifications on the Ashcroft PPSN7HB25XC8 30IMV/15#

What's included with the Ashcroft PPSN7HB25XC8 30IMV/15#

  • Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi
datasheet for the Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi manual for the Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi

Ask a question about Ashcroft PPSN7HB25XC8 30IMV/15# PP-Series Pressure Switch with NEMA 7 Enclosure, Fixed Deadband, -30 inHg/15 psi

Customer Reviews for the Ashcroft PPSN7HB25XC8 30IMV/15#
