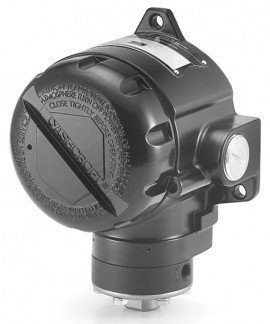

Designed for use in virtually all industrial and OEM applications. It provides accuracy, reliability and long-cycle life. The rugged, explosion-proof housing provides superior protection. This product is ideal for satisfying requirements for pressure control, safety shutdown or alarm operations in hazardous applications.
Designed for use in virtually all industrial and OEM applications. It provides accuracy, reliability and long-cycle life. The rugged, explosion-proof housing provides superior protection. This product is ideal for satisfying requirements for pressure control, safety shutdown or alarm operations in hazardous applications.
Features
Applications
| Setpoint | Factory set or field adjustable |
| Setpoint Repeatability | ±1% of full range (Additional setpoint shift of ±1% of range per 50 °F from initial setpoint set at 70 °F typical) |
| Enclosure Rating | B4/Hydraulic: NEMA 4X, IP66 B7: NEMA 7/9, IP66 |
| Enclosure Material | Epoxy coated aluminum (standard) Optional: 316 stainless steel (NEMA 7/9 only) |
| Diaphragm Material | Buna N, Viton, Teflon, SS, Monel |
| Pressure Connection | 1⁄4 NPT Female (standard) Optional: 1⁄2 NPT Female , 1 ⁄4 NPT Female & 1⁄2 NPT Male combo |
| Electrical Output | SPDT or DPDT |
| Electrical Termination | 3⁄4 NPT Female (standard) Optional: 1⁄2 NPT Female |
| Ambient Temperature Range | -20 to 150°F (–19 to 65 °C) All units calibrated at 70 °F |
| Process Temperature | 0 to 150 °F (Buna N or Teflon diaphragm) 20 to 300 °F (Viton diaphragm) 0 to 300°F (SS or Monel diaphragm) |
| Pressure Ranges | Pressure: Vac to 3000# Differential: 0 to 600#D Hydraulic: 1000 to 7500# |
| Approvals | UL E34743 (B4/D4) E38812 (B7/D7) CSA: 55541 ATEX: Sira 02ATEX1391X (B7/D7 with XCN) IECEx SIR 14.0077X FM: Limit Control and Steam Limit Control |
| Setpoint | Factory set or field adjustable |
| Setpoint Repeatability | ±1% of full range (Additional setpoint shift of ±1% of range per 50 °F from initial setpoint set at 70 °F typical) |
| Enclosure Rating | B4/Hydraulic: NEMA 4X, IP66 B7: NEMA 7/9, IP66 |
| Enclosure Material | Epoxy coated aluminum (standard) Optional: 316 stainless steel (NEMA 7/9 only) |
| Diaphragm Material | Buna N, Viton, Teflon, SS, Monel |
| Pressure Connection | 1⁄4 NPT Female (standard) Optional: 1⁄2 NPT Female , 1 ⁄4 NPT Female & 1⁄2 NPT Male combo |
| Electrical Output | SPDT or DPDT |
| Electrical Termination | 3⁄4 NPT Female (standard) Optional: 1⁄2 NPT Female |
| Ambient Temperature Range | -20 to 150°F (–19 to 65 °C) All units calibrated at 70 °F |
| Process Temperature | 0 to 150 °F (Buna N or Teflon diaphragm) 20 to 300 °F (Viton diaphragm) 0 to 300°F (SS or Monel diaphragm) |
| Pressure Ranges | Pressure: Vac to 3000# Differential: 0 to 600#D Hydraulic: 1000 to 7500# |
| Approvals | UL E34743 (B4/D4) E38812 (B7/D7) CSA: 55541 ATEX: Sira 02ATEX1391X (B7/D7 with XCN) IECEx SIR 14.0077X FM: Limit Control and Steam Limit Control |
