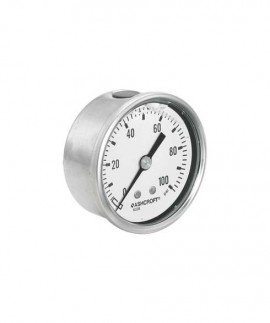

Image is for reference only, refer to product info for complete details.
Configure This Product!
Industrial pressure gauge with exceptional quality and reliability that can withstand even harsh ambient and process conditions. It features a 304 stainless steel case, 2" dial, 1/4 NPT center back mount connection, 316 stainless steel tube and socket, ±3% of span accuracy and a pressure range of 0 to 10 kg/cm2.
Industrial pressure gauge with exceptional quality and reliability that can withstand even harsh ambient and process conditions. It features a 304 stainless steel case, 2" dial, 1/4 NPT center back mount connection, 316 stainless steel tube and socket, ±3% of span accuracy and a pressure range of 0 to 10 kg/cm2.
This pressure gauge is a compact, all-stainless steel design for limited space installations requiring corrosion resistance. This provides the user with an economical solution for harsh environment pressure measurement.
Features
Applications
| Accuracy | ±3-2-3% of span (ASME, Grade B) |
| Pressure Range | 0 to 10 kg/cm2 |
| Dial Size | 2" (50 mm) |
| Case | 304 Stainless Steel |
| Wetted Materials | 316L stainless steel |
| Process Connection | Location: Center back connection Size: 1/4" NPT |
| Accuracy | ±3-2-3% of span (ASME, Grade B) |
| Pressure Range | 0 to 10 kg/cm2 |
| Dial Size | 2" (50 mm) |
| Case | 304 Stainless Steel |
| Wetted Materials | 316L stainless steel |
| Process Connection | Location: Center back connection Size: 1/4" NPT |
